| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2GB DDR4 RAM |
| Flash Memory | 8GB EMMC Flash |
| Resolution | 1280x800 |
| Touch Type | Capacitive Touch Screen |

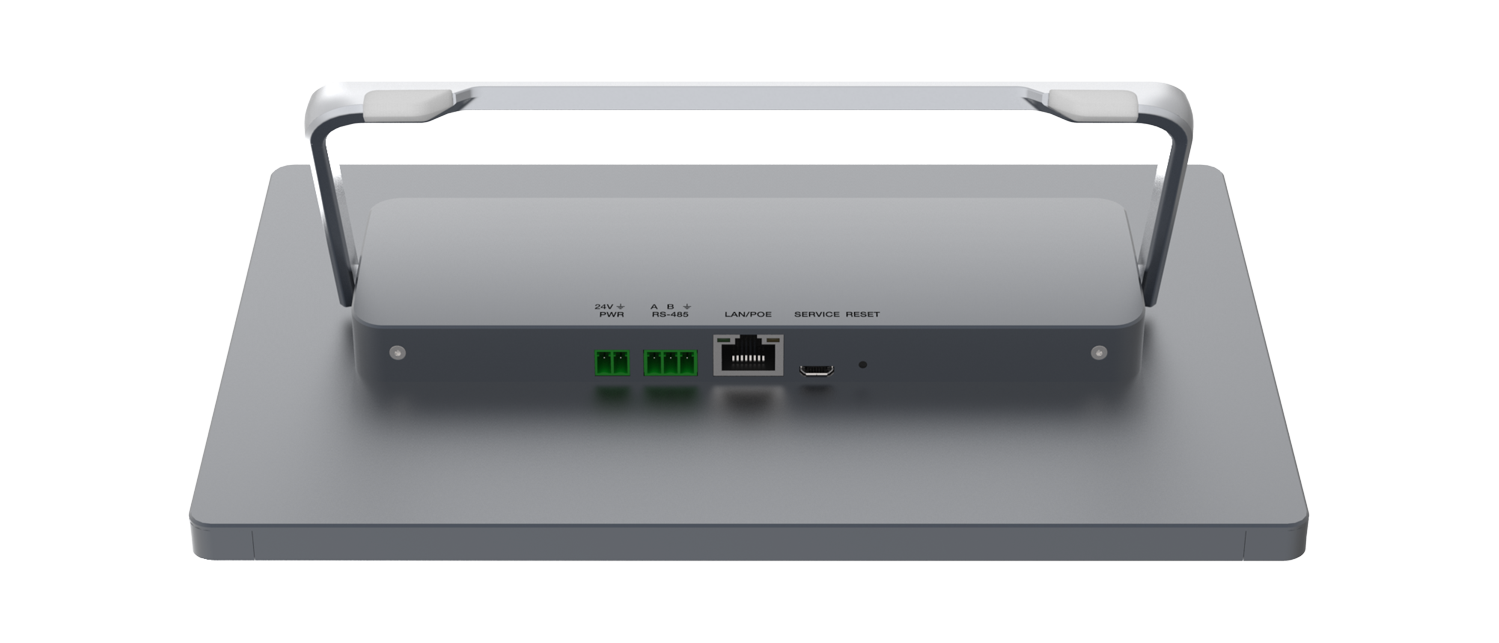

| Connections | |
| RS-485 | 1x 3-pin Phoenix Connectors, for RS-485 serial data communication |
| LAN/POE | 1x standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function |
| POWER | 1x 2-pin Phoenix Connectors, for power supply |
| DEBUG | 1x Micro USB, system debugging port |
| Mechanical | |
| Housing | Front Panel — Touch Screen; Rear Case — Aluminum Alloys |
| Color | Front Panel — Black; Rear Case — Apple Gray |
| Dimensions | 245.4mm (L) x164mm (W)x27mm (D) |
| Weight | 887g |
| Power Supply | 24V DC/1A or POE |
| Power Consumption (Max) | 6W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Relative Humidity | 10~90% RH (non-condensing) |
