☆ ARM Cortex-A53 architecture 1.8Ghz main frequency
☆ Android 9.0 system, 8GB Emmc Flash, 2GB DDR4 RAM

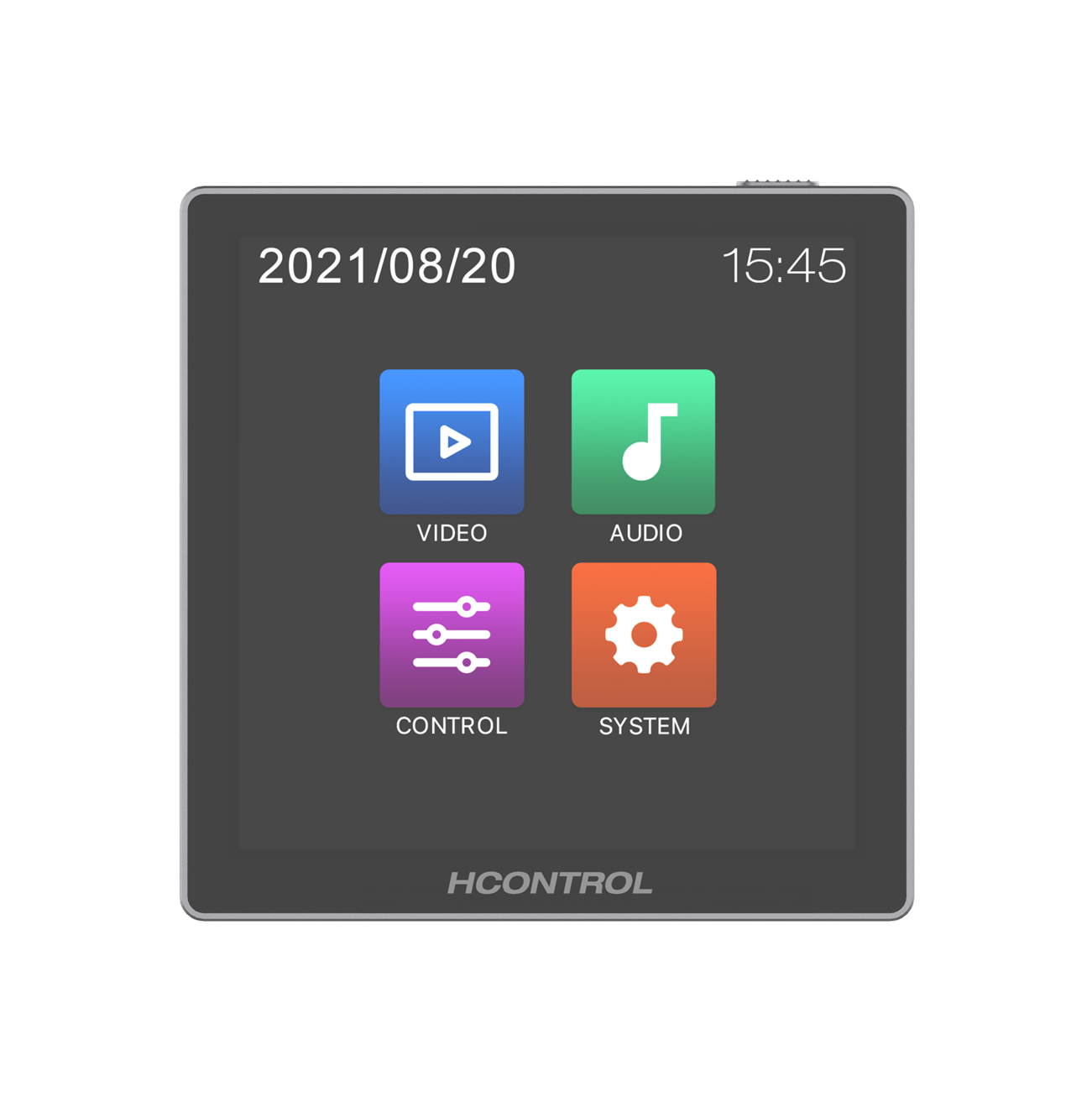

☆ 720x720 (1:1) resolution, standard 86 box wall-plate design
☆ One machine with two modes, can be used as touch screen central control or user terminal
☆ Support one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
☆ Support access to the host system management web page with a password
☆ Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)
☆ With 1 Gigabit network port, the highest rate up to 1G/bps
☆ Support POE function or independent DC 24V/1A power supply
☆ Interface and function configuration via central control software
☆ Support remote control, remote O&M, online upgrade
☆ Support factory reset
| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2GB DDR4 RAM |
| Resolution | 720x720 |
| Touch Type | Capacitive Touch Screen |

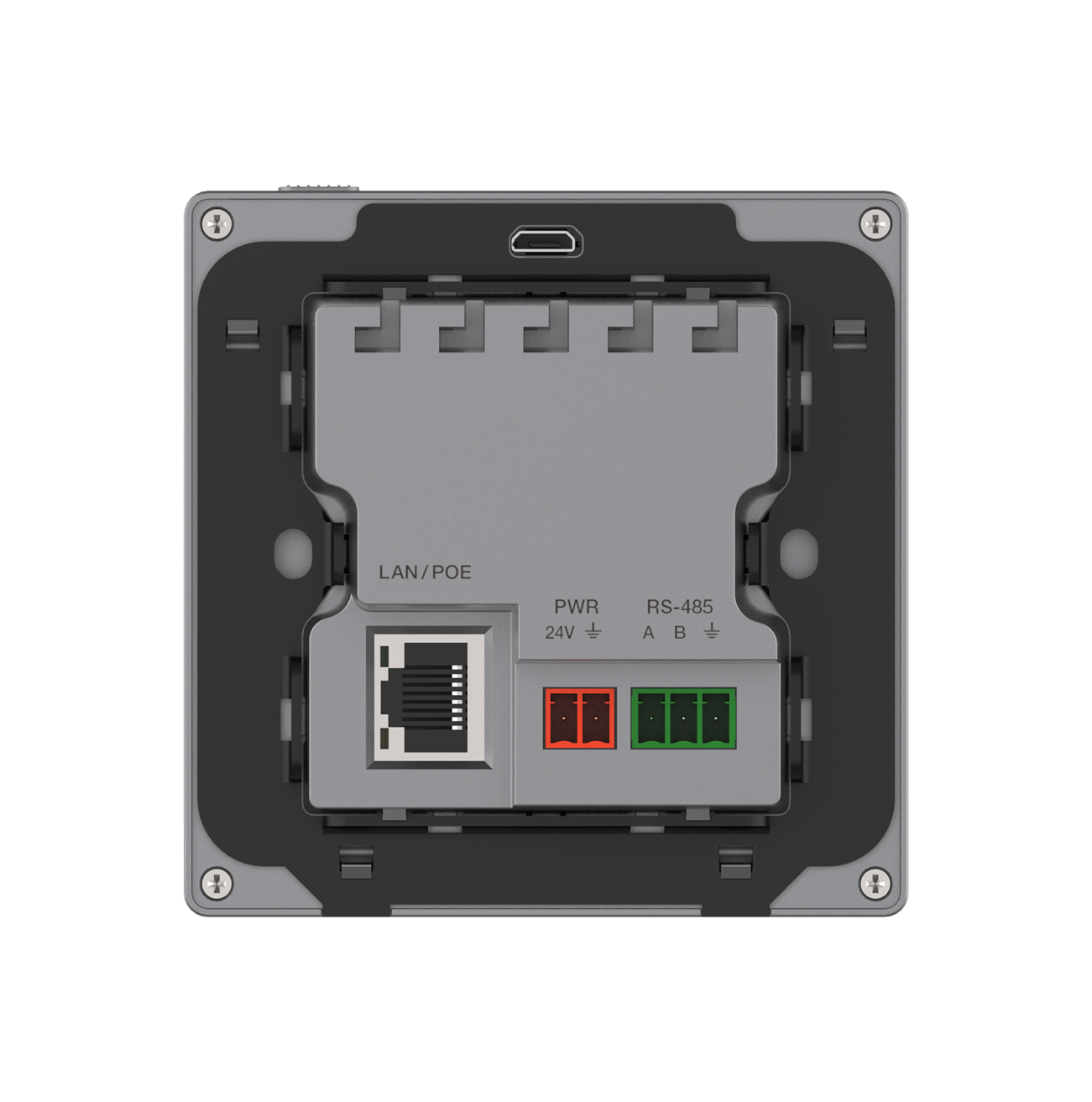

| Connections | |
| RS-485 | 1x 3-pin Phoenix Connectors, for RS-485 serial data communication |
| LAN/POE | 1x standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function |
| POWER | 1x 2-pin Phoenix Connectors, for power supply |
| DEBUG | 1x Micro USB, system debugging port |
| Mechanical | |
| Housing | Front Panel — Touch Screen; Rear Case — Plastic |
| Color | Front Panel — Black; Rear Case — Apple Gray |
| Dimensions | 86 (W)x38mm (D)x86mm (H) |
| Weight | 186g |
| Power Supply | 24V DC/1A or POE |
| Power Consumption (Max) | 5W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Relative Humidity |  10~90% RH (non-condensing) |
