☆ Provide 12-ch balanced MIC/linear inputs and 12-ch balanced linear outputs
☆ Provide two standard DANTE network audio interfaces
☆ Support adaptive feedback suppression function
☆ Support the full-band adaptive acoustic echo cancellation technology
☆ Dynamic adaptive noise reduction technology is provided to reduce noise with signal levelup to 18dB
☆ Auto Mixer function is provided to set the order of priority when multiple microphones are input at one time
☆ Inclusive of Digital signal processing modules such as Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter and Delay
☆ Capable to switch matrix routings
☆ Support volume control, meter, scene control, etc.
☆ 48V phantom power supply for 12-ch MIC inputs
☆ 48KHz sampling rate, 24-bit for A/D or D/A conversion
☆ Support 8-ch programmable GPIO function
☆ Compatible to run on Win 7 and Win 10, with standard RJ45 interface control
☆ Support RS-232 serial commands control
| Technical | ||
| Amplitude-frequency (20Hz~20KHZ@+4dBu) |
±0.2dB | |
| THD+N (1KHZ@+4dBu) | ≤0.01% | |
| SNR (linear input) | ≥90dB | |
| Dynamic Range | ≥100dB | |
| Channel Level Difference | ±0.5dB | |
| Channel Isolation | ≥80dB | |
| Max Input Level | 20dBu | |
| Max MIC Gain | 40dB | |
| Input Impedence | 20KΩ | |
| Output Impedence | 300Ω | |
| Sampling Frequency | 48KHZ | |
| A/D and D/A Conversion | 24Bit | |
| Phantom Power | +48 VDC | |

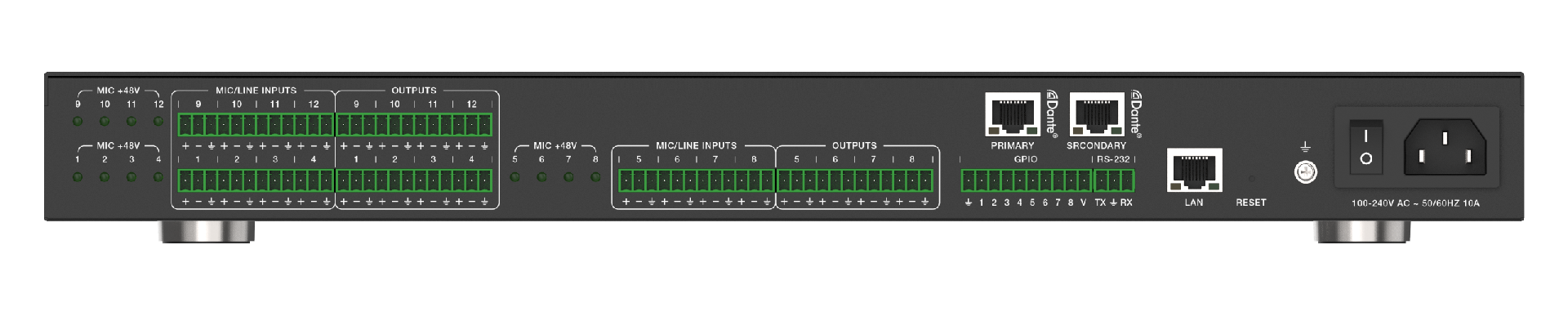

| Connections | ||
| Input ports |
12 × Balanced MIC/LINE [3-pin phoenix connector] or 6 × Stereo Audio [3-pin phoenix connector] |
|
| Output ports | 12 × Balanced LINE [3-pin phoenix connector] or 6 × Stereo audio [3-pin phoenix connector] |
|
| Digital Audio Interfaces | 2 × Dante [RJ45] | |
| Controls | 1 × LAN [RJ45] 1 × RS-232 [3-pin phoenix connector] 8 × GIPO [10-pin phoenix connector]] |
|
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | 440mm (W)×250mm (D)×45mm (H) | |
| Weight | 3.37kg | |
| Power Supply | AC 100 - 240V 50/60Hz | |
| Power Consumption (Max) | 11W (Max) | |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F | |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F | |
| Relative Humidity |
|
|
