☆ HDMI 2.0b and HDCP 2.2 compliant
☆ Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
☆ Flexible transceiver design (Encoder, Decoder, Copper and Fiber portswithin a single box)
☆ Encoder or Decoder mode can be set via Button or API
☆ Automatic detection of Fiber and Copper ports (priority can be set)
☆ Encoder supports HDMI Loop out
☆ Support HDR10, Dolby Vision, HLG, 3D as well
☆ Support full HDMI audio formats, up to Dolby TrueHD, Dolby Atmos and DTS-HD, DTS:X
☆ Support Zero-Frame latency operating mode
☆ Support signal extension, seamless switching, Matrix, Video Wall up to 9x9 and MultiView up to 25 windows
☆ Flexible audio routes control including bidirectional analog audio transmissions between Encoder and Decoder
☆ Built-in H.264/H.265 Secondary Stream (SS) for preview
☆ Support Secondary Stream VLAN tagging and parameters configuration
☆ Support bi-directional IR and RS-232 control signal pass-through
☆ Support USB2.0 (KVM), CEC routing control
☆ Support IR, RS-232, TCP/IP, Web GUI control
☆ Standard POE supported (802.3at PD device)
☆ 10G managed network switch
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Input Format | 10GBaseT |
| Network Video Bandwidth | 10G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | Full Color-Depth |
| HDR | HDR, HDR 10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, DTS:X |
| Analog Audio Formats | Left and Right stereo analog audio |
| Transmission Distance | 100m (CAT6A/7) / 70m (CAT6) |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

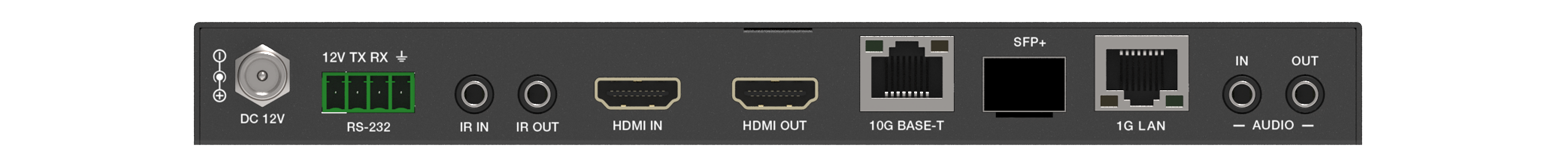

| Input ports | 1x HDMI IN [Type A, 19-pin female] 1x USB 2.0 HOST [Type B, 4-pin female] 1x IR IN [3.5mm Jack] 1x AUDIO IN [3.5mm Jack] 1x RS-232 [4-pin phoenix connector] |
| Output ports | 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3.5mm Jack] 1x IR OUT [3.5mm Jack] 2x USB 2.0 DEVICE [Type-A, 4pin female] |
| Network ports | 1x 10G BASE-T [RJ45 jack] 1x 10G SFP+ [Fiber slot] 1x 1G LAN [RJ45 jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 204mm [W] x 134mm [D] x 21.5mm [H] |
| Weight | 693g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 13.5W |
| Operation Temperature | 32-104°F/0 -40°C |
| Storage temperature | -4-140°F/-20-60°C |
| Relative Humidity |  20-90% RH (no condensation) |
