☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Input supports up to 4K60 4:4:4, output supports 4K30 4:4:4
☆ Transmit video, audio, IR , RS-232, CEC and USB signals over Ethernet
☆ Support unicast and multicast functions
☆ Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9)
☆ Intelligent video wall class management
☆ JPEG2000 Main Stream and standard H.265 codec Secondary Stream (SS)
☆ Support Secondary Stream VLAN ID and parameters configuration
☆ Support 1G Ethernet Switch, router and hub device transmission
☆ Support POE function
☆ Flexible control through Web GUI/TCP/RS-232/IR and third-party controller
☆ HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X
☆ Smart networking design for easy and flexible installation.
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Compression Standard |
JPEG2000 | ||
| Video Network Bandwidth | 1G | ||
| Video Resolution | 480i ~1080p@50/60Hz, 4K@24/30Hz, support 4K@50/60Hz input | ||
| Color Depth | 8/10/12-bit | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | ||
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X | ||
| Transmission Distance | 100M CAT5E/6/6A/7 | ||
| IR Level | 12Vp-p | ||
| IR Frequency | Wideband 20K - 60KHZ | ||
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | ||
| Connections | |||

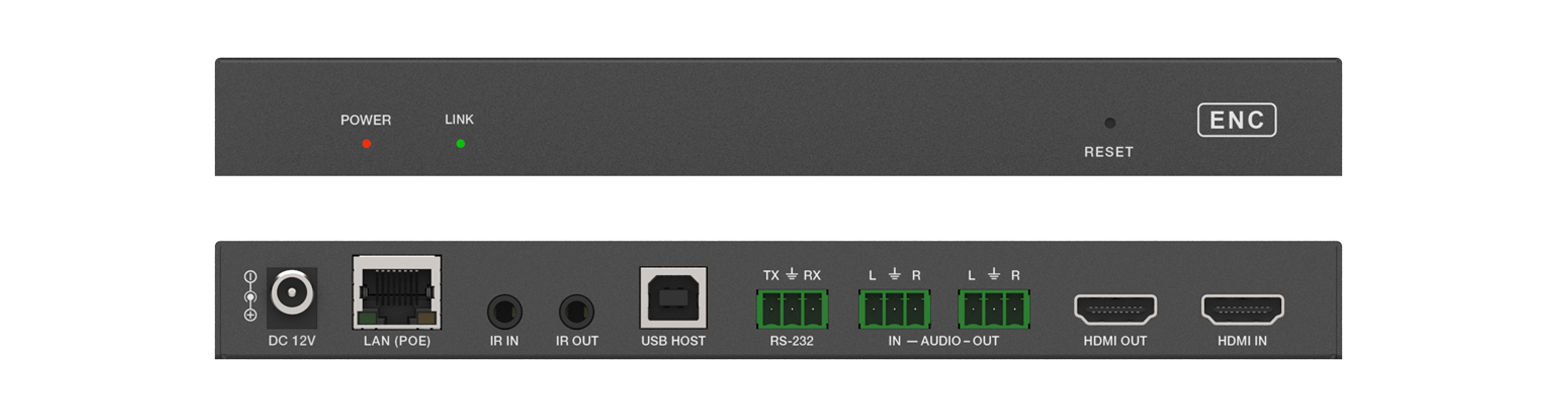

| Input ports | Input: 1 x HDMI IN [Type A, 19-pin male] 1x L/R AUDIO IN [3.81mm Phoenix connector] 1x IR IN [3.5mm Audio Jack] Output: 1 × HDMI OUT [Type A, 19-pin male] 1x L/R AUDIO OUT [3.81mm Phoenix connector] 1x IR OUT [3.5mm Audio Jack] Control: 1 x RS-232 [3.81mm Phoenix connector] 1x LAN [RJ45 jack] 1x USB [USB TypeB] |
||

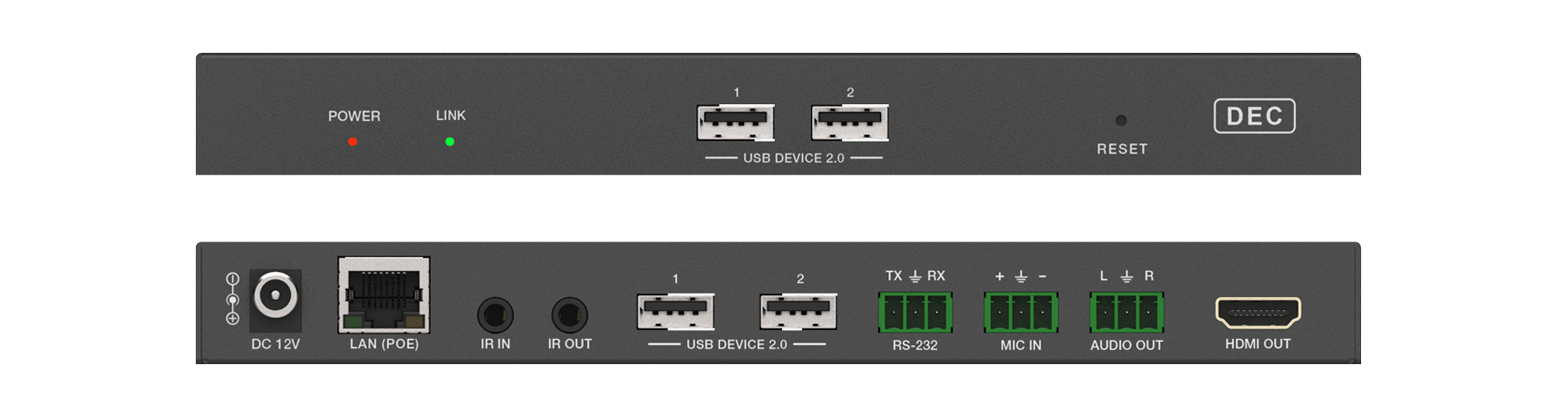

| Output ports | Input: 1x IR IN [3.5mm Audio Jack] 1x MIC IN [3.81mm Phoenix connector] Output: 1 x HDMI OUT [Type A, 19-pin male] 1x IR OUT [3.5mm Audio Jack] 1x L/R AUDIO OUT [3.81mm Phoenix connector] Control: 1 x LAN [RJ45 jack] 2x USB1.1 [USB-A male] 2x USB2.0 [USB-A male] 1x RS-232 [3.81mm Phoenix connector] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 204mm [W] x 100mm [D] x 21.5mm [H] | ||
| Weight | TX:509g, RX:496g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption (Max) | Encoder: < 8W, Decoder: < 4W | ||
| Operation Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
| Resolution /Cable Length | 4K60 - Feet/ Meters | 4K30 - Feet / Meters | 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
