☆ HDMI 1.3 and HDCP 1.4 compliant
☆ Video resolution up to 1920x1200@60Hz 4:4:4
☆ Support 4.95Gbps video bandwidth
☆ Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
☆ Support point-to-point signal extension
☆ Support signal distribution, multicast mode, distributed matrix and video wall (up to 9x9) functions over a 1G Network Switch
☆ Intelligent video wall management makes it achievable of novel layout of wall configurations
☆ Support LPCM 2.0CH (32/44.1/48KHz) audio format
☆ Encoder supports HDMI local loop output
☆ Support audio embedding and extracting
☆ Support USB/KVM function (one to one & one to many), and bidirectional IR/RS-232 control (pass-through & Guest mode)
☆ Support main stream and sub stream encoding modes
☆ Stream parameters can be configured via Web GUI or Controller Box
☆ Controlled via panel buttons, IR, RS-232, TCP/IP, Web GUI and Controller Box
☆ Support POE function (802.3af Class 3, PD mode)
☆ Smart networking design for easy and flexible installation
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Compression Standard |
H.265/H.264 |
| Transmission Distance | 100m (CAT5E/6/6A/7) |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K - 60KHZ |
| Video Resolution | Up to 1920x1200@60Hz 4:4:4 |
| Color Space | RGB4:4:4, YCbCr 4:4:4,YCbCr 4:2:2 |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Audio Formats | LPCM 2.0CH (32/44.1/48KHz) |
| Connections | |
| Encoder | 1x HDMI IN [Type A, 19-pin female] 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO IN [3-pin phoenix connector] 1x AUDIO OUT [3-pin phoenix connector] 1x RS-232 [3-pin phoenix connector] 1x LAN [RJ45 connector, POE] 1x IR IN [3.5mm audio jack, 12V IR] 1x IR OUT [3.5mm audio jack, 12V IR] 1x USB Host [Type B, 4-pin female] 2x USB Devices [Type A, 4-pin female] |

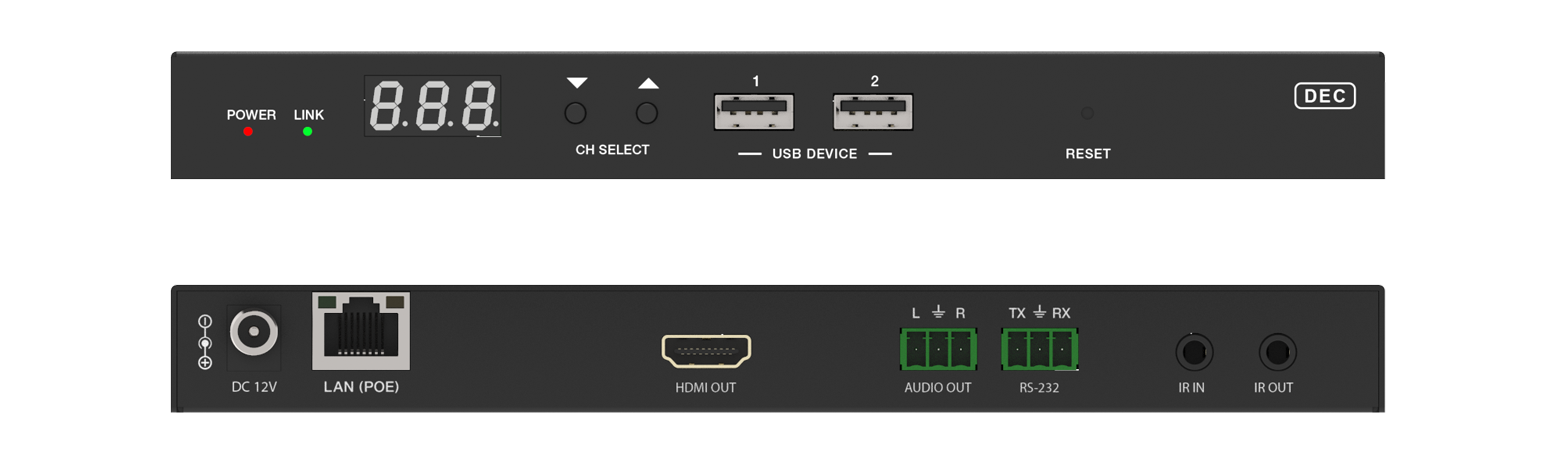

| Decoder | 1x HDMI OUT [Type A, 19-pin female] 1x LAN [RJ45 connector, POE] 1x AUDIO OUT [3-pin phoenix connector] 1x RS-232 [3-pin phoenix connector] 1x IR IN [3.5mm audio jack, 12V IR] 1x IR OUT [3.5mm audio jack, 12V IR] 2x USB Devices [Type A, 4-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Encoder / Decoder: 204mm [W] x 95mm [D] x 21.5mm [H] |
| Weight | Encoder: 472g, Decoder: 468g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A |
| Power Consumption (Max) | Encoder: 4.08W, Decoder: 2.76W |
| Operation Temperature | 14 - 113°F / -10 - 45°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity |  20 - 90% RH (no condensation) |
