☆ 4K60 4:4:4 over IP H.265 Transceiver
☆ Encoder/Decoder one box design with Copper and Fiber full version
☆ HDMI 2.0b, HDCP 2.2 compliant, up to 4K60Hz (4:4:4) 18Gbps
☆ HDR10, Dolby Vision, HLG pass-through
☆ Support ultra-low latency operating modes
☆ Seamless switching, video wall up to 9x9, multiviewer up to 25 windows
☆ Support USB KVM and RS-232
☆ Audio embedding and de-embedding
☆ Encoder or Decoder mode can be set by front panel button or API
☆ Encoder supports HDMI Loop out
☆ Built-in H.264 stream for video preview on portable devices

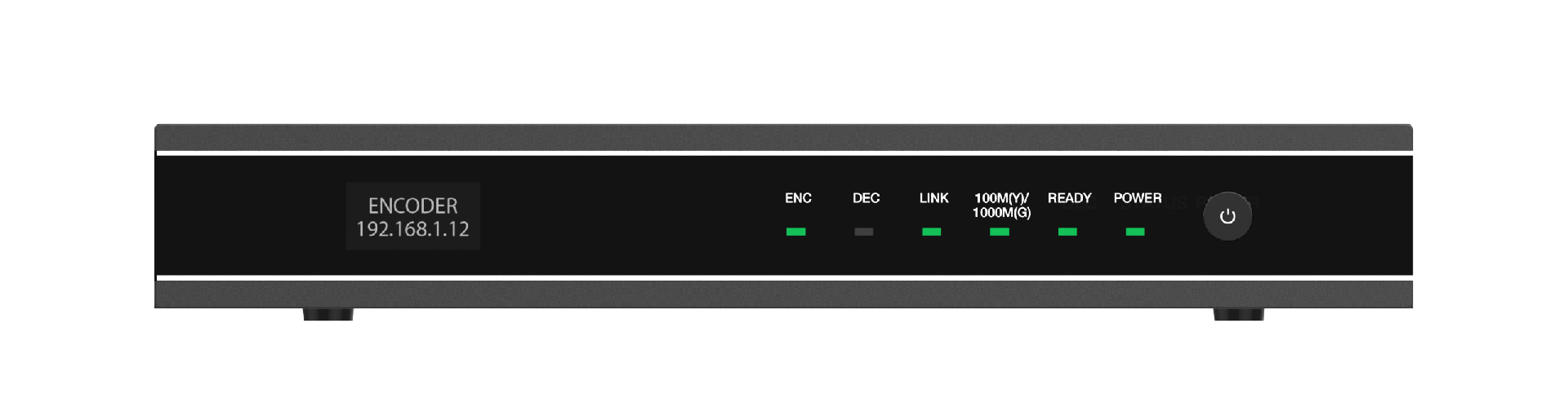

☆ Control via front panel buttons, RS-232 and TCP/IP
☆ Standard POE supported (802.3at PD device)
☆ 1G managed network switch
☆ Work with IP Controller box HDN-CTL500H
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Compression Standard |
H.264/H.265 |
| Video Bandwidth | 18Gbps |
| Network Port | 1000M Base-T (supporting POE) |
| Network Video Bandwidth | 1G |
| Video Resolution | 1024x768~3840x2160@60Hz (Note: The decoder supports custom resolution output.) |
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8/10/12 bit |
| Encoding Sampling Rate | 48KHz |
| HDMI Audio Formats | LPCM |
| Analog Audio Formats | Left and Right stereo analog audio |
| ESD Protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) |

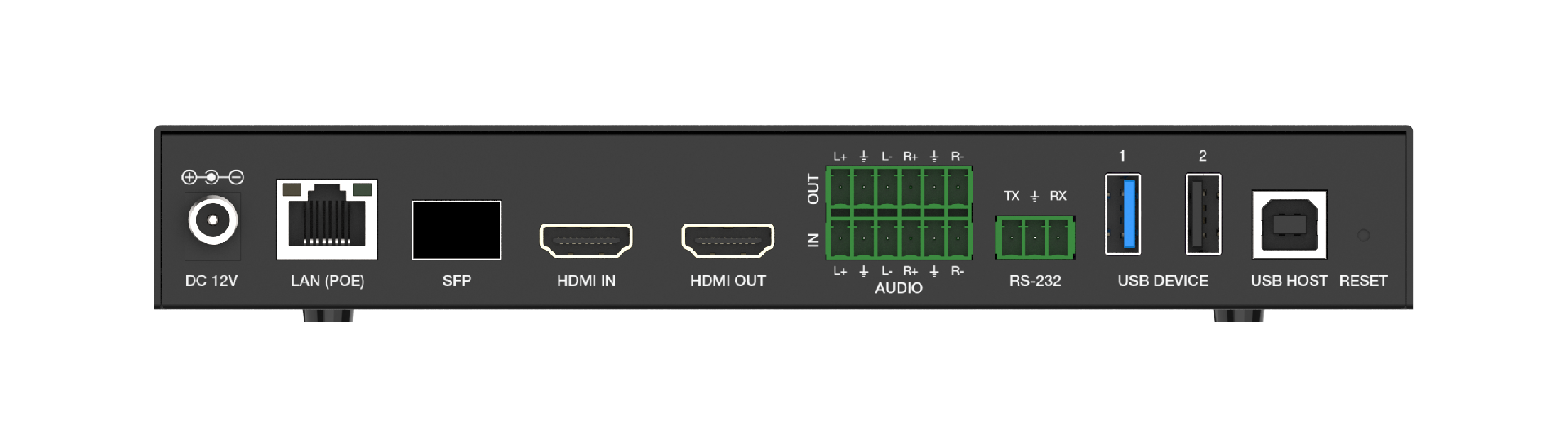

| Connections | |
| Input | 1x HDMI IN [Type A, 19-pin female] 2x AUDIO IN [3-pin phoenix connector, stereo balanced linear interface] |
| Output | 1x HDMI OUT [Type A,19-pin female] 2x AUDIO OUT [3-pin phoenix connector, stereo balanced linear interface] |
| Control | 1x LAN (POE) [RJ45, supporting POE] 1x RS-232 [3-pin phoenix connector] 1x USB HOST [Type B, 4-pin female] 2x USB DEVICE [Type A, 4-pin female] 1x SFP [Fiber slot] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 204mm (W) × 131.5mm (D) × 30mm (H) |
| Weight | 760g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | ＜10.5W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity |  20 - 90% RH (no condensation) |
