☆ Easy to create project, control and manage the system
☆ Flexibly support Auto, DHCP and Manual three types of IP configurations
☆ HTTPS, SSH, SFTP security compatible
☆ Built-in Web GUI control interface, supporting Drag & Drop operations
☆ Support image preview
☆ Support video, audio, RS-232, IR, KVM control and management of the distributed system
☆ Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
☆ Support LAN/RS-232 port control and third-party central control
☆ Support IR signal receiving (3.5mm audio jack, 12V level)
☆ 4 channel GPIO control ports (5V/12V optional level)
☆ Multiple circuits protection, lightning protection and ESD design
☆ Reliable system design, ensuring 7*24 hours reliable and stable work
| Technical | |
| Network Bandwidth | 100M |
| Transmission Distance | 100m CAT 5E/6/6A/7 |

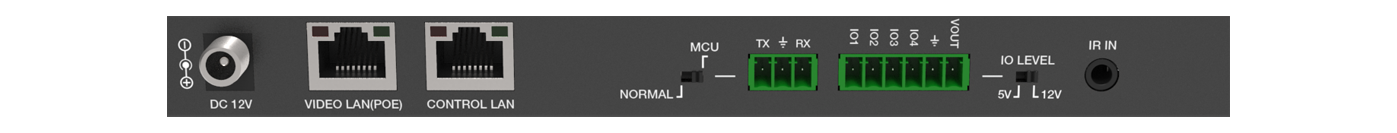

| Control Ports | 2x 100M LAN [RJ45 connector] [VIDEO LAN support POE] 1x IR IN [3.5mm audio jack, 12V level] 1x DIGITAL I/O [6-pin 3.81mm phoenix connector] 1x RS-232 [3-pin 3.81mm phoenix connector] |
| Dimensions | 204mm(W)×98mm(D)×21mm(H) |
| Housing | Metal Enclosure |
| Color | Black |
| Weight | 509g |
| Power Supply | 12V/1A |
| Power Consumption (Max) | 4.5W |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity |  20 - 90% RH (no condensation) |
