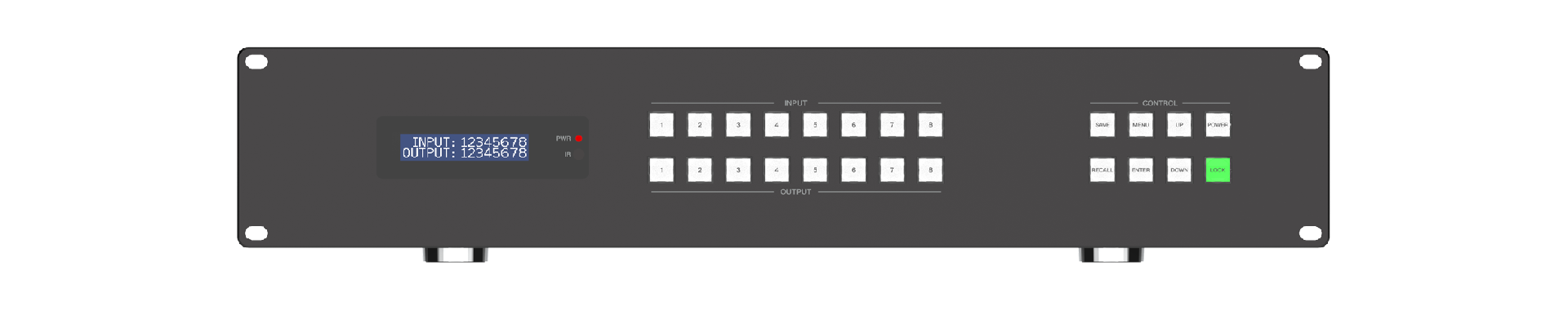

☆ HDMI 2.0b and HDCP 2.2 compliant
☆ HDMI 18Gbps video bandwidth, up to 4K60 YCbCr 4:4:4 24bit
☆ Pluggable card structure (One card with four channels)
☆ Support 8/16/36/72 channel video signal inputs and outputs
☆ Multiple input/output cards with HDMI, DVI-U (DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI, HDBaseT and optical fiber
☆ Video resolution up to 1920×1200p60hz (2K series card), 3840x2160p60hz (4K series card)
☆ Seamless switching without image tear, black screen or flicker in the switching process
☆ Based on Gen-Lock video wall splicing technology, the latency between any output channel is less than 0.1ms
☆ Any splicing modes in the allowed range of 8x8~72x72, especially suitable for LCD/LED video wall
☆ Multiple output resolutions to meet the needs of different types of display devices
☆ Adopt pure hardware high-speed matrix switching chip with high integration
☆ Built-in signal equalization, signal recovery and signal redriver
☆ Built-in video quality enhancement, output video quality can be adjusted
☆ Built-in HDCP processing logic to avoid HDCP compatibility issues
☆ Input cards support audio embedding, output cards support audio de-embedding
☆ Analog audio embedding supports LPCM 2.0CH, analog audio and video signals are input synchronously
☆ Analog audio de-embedding supports LPCM 2.0CH, analog audio and video signals are output synchronously
☆ Up to 64 kinds of scene presets can be recalled
☆ Advanced EDID management (Internal EDID or copy from any output devices)
☆ Control via front panel buttons, IR, RS-232, TCP/IP, Web GUI or PC program
☆ Built-in intelligent control system with user-friendly GUI
☆ Silent fan design, noiseless, stable performance
☆ AC power port with built-in power module
☆ Standard rack size design, convenient for installation
| Technical | |||
| HDMI Compliance | HDMI 1.4 (2K series card), HDMI 2.0b (4K series card) | ||
| HDCP Compliance | HDCP 1.4 (2K series card), HDCP2.2 (4K series card) | ||
| Video Bandwidth | 600MHz/18Gbps | ||
| Video Resolution |
1920x1200p60Hz (2K series card) 3840x2160p60Hz 4:4:4 (4K series card) |
||
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth |
2K series card: 8/10/12-bit (1080P60Hz) 4K series card: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4) |
||
| HDMI Audio Formats |
HDMI audio: LPCM 2.0 / 5.1 / 7.1CH Analog audio: LPCM 2.0CH |
||
| Transmission Distance |
HDMI: 1080P/15 meters, 4K30/10 meters, 4K60/5 meters HDBT: 1080P/70 meters/100 meters/150 meters; 4K/40 meters/70 meters/120 meter |

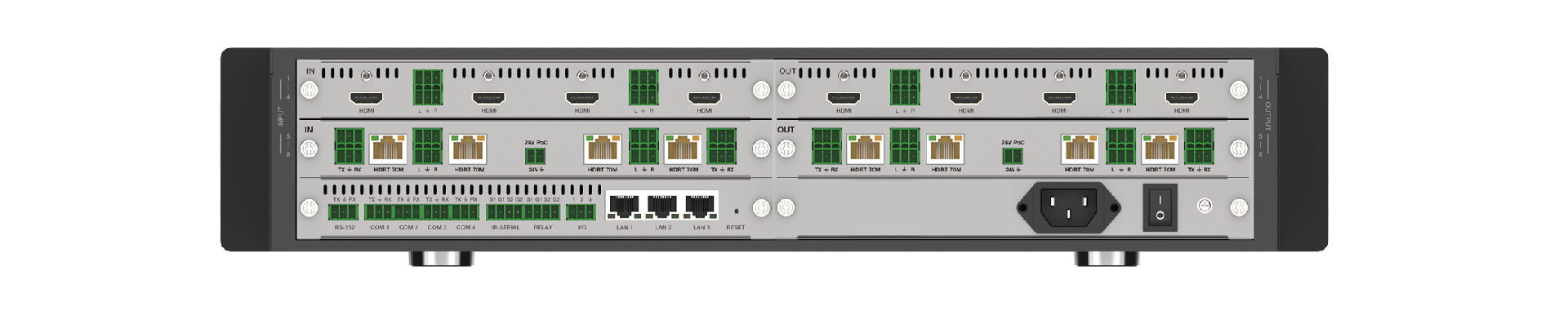

||
| ESD Protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) | ||
| Connections | |||
| Input Ports |
2x Input card (8x8 Matrix); 4 x Input card (16x16 Matrix); 9x Input card (36x36 Matrix) |
||
| Output Ports |
2x Output card (8x8 Matrix); 4 x Output card (16x16 Matrix); 9x Output card (36x36 Matrix) |
||
| Control Ports |
1x Master control card, including the following ports： 1x RS-232 [3-pin Phoenix Connector] 4x COM [3-pin Phoenix Connector] 1x IR-SERIAL [4-pin Phoenix Connector] 1x RELAY [4-pin Phoenix Connector] 1x I/O [3-pin Phoenix Connector] 1x RESET [Reset button for the central control system] 3x LAN [RJ45] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions |
8x8 Matrix: 483mm (W) × 377mm (D) × 89mm (H) |
||
| Weight |
8x8 Matrix: 5.95kg (No input/output cards are included) |
||
| Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 12V/17 |
||
|
Power Consumption |
8x8 Matrix: 35W~90W (Match with different input/output cards) 16x16 Matrix: 70W~170W (Match with different input/output cards) 36x36 Matrix: 100W~350W (Match with different input/output cards) |
||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | ||
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C | ||
| Relative Humidity |
 20 - 90% RH (no condensation) |
||
