☆ Compliant HDMI 2.0b
☆ Compliant HDCP 2.2 and HDCP 1.4
☆ Features 2 operational modes:
- 4×4 Matrix (seamless switch)
- Video wall (2×2, 4×1 or 1×4 etc configuration)
☆ Seamless video switching
☆ Video inputs support all industry standard video resolutions including VGA-WUXGA (up to
1920×1200 @60Hz) and 480i-4K (3840 x 2160 @60Hz 4:4:4, 4096 x 2160 @60Hz 4:4:4)
☆ HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4:4
☆ Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
☆ Advanced EDID management
☆ Web interface module for control and configuration of Matrix

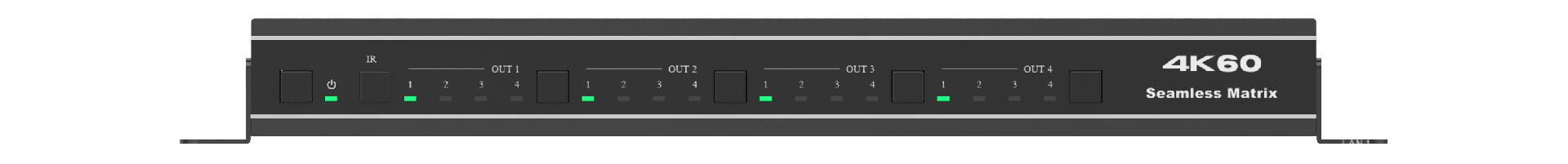

☆ Control via front panel, IR, RS-232 and TCP/IP
☆ 3rd Party drivers available for all major home control brands
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2/1.4 | ||
| Video Bandwidth | 594MHz/18Gbps | ||
| Video Resolution |
Input: VGA-WUXGA (up to 1920×1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4) |
||
| Output: 4096x2160p60, 4096x2160p50, 3840x2160p60,
3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto |
|||
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth |
8/10/12-bit |
||
| HDMI Audio Formats |
HDMI audio: LPCM 2.0 / 5.1 / 7.1CH Analog audio: LPCM 2.0CH |
||
| IR Level |
12Vp-p |
||
| IR Frequency | 38KHz | ||

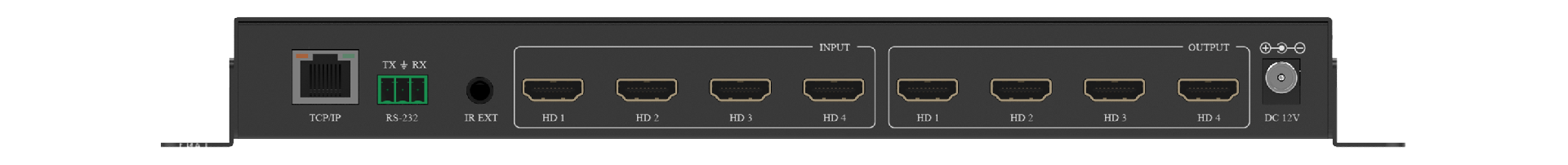

| Connections | |||
| Input Ports |
4x HDMI Type A [19-pin female] |
||
| Output Ports |
4× HDMI Type A [19-pin female] |
||
| Control Ports |
1× RS-232 [3pin-3.81mm phoenix connector] 1× TCP/IP [RJ45] 1× IR EXT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions |
270mm (W) × 166mm (D) × 30mm (H) |
||
| Weight |
1165g |
||
| Power Supply |
Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
||
|
Power Consumption |
19.56W (Max) |
||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | ||
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C | ||
| Relative Humidity |
 20 - 90% RH (no condensation) |
||
