☆ HDMI 2.0, HDCP 2.2 and DP1.2a compliant
☆ Support HDMI input and USB-C input, and the resolution is up to 4K@60Hz 4:4:4
☆ Support optical audio and L/R analog audio de-embedding output
☆ Support 8 video wall splicing modes: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
☆ Support image 180° rotation, convenient for ceiling installation
☆ Support bezel adjustment for the splicing edge
☆ Advanced EDID management

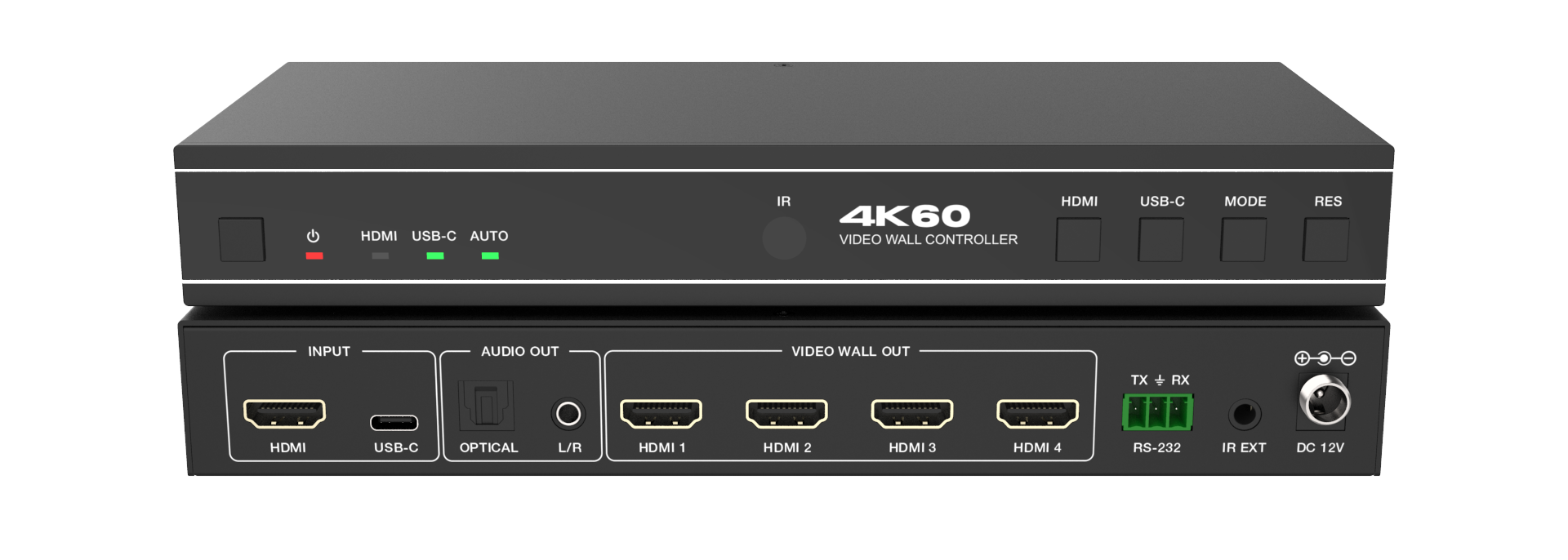

☆ Control via front panel buttons, IR remote and RS-232 commands
☆ Simple plug and play, no drive and installation setting are requiredIt can be controlled via front panel buttons, IR remote and RS-232 commands.
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 594MHz/18Gbps | ||
| Video Resolution |
Input: up to 4K@60Hz 4:4:4 Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz |
||
| Color Space |
RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
||
| Color Depth |
8/10/12-bit |
||
| HDMI Audio Formats |
HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0 |
||
| IR Level |
5Vp-p |
||
| IR Frequency | 38KHz | ||
|
Audio Latency |
No Latency |
||
| Video Latency | No Latency | ||
|
ESD Protection |
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
||
| Connections | |||

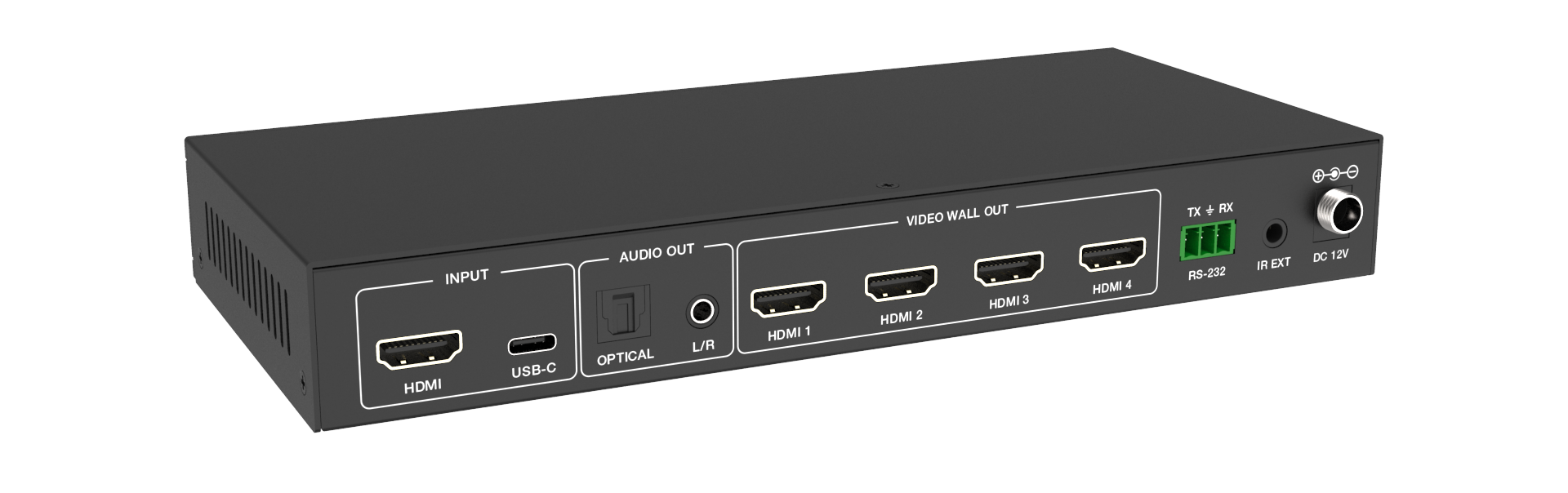

| Input Ports |
1 × HDMI INPUT [Type A, 19-pin female] 1 × USB-C INPUT [Type C, 24-pin female] |
||
| Output Ports |
4 × HDMI OUTPUT [Type A, 19-pin female] 1 × OPTICAL AUDIO OUT [S/PDIF] 1 × L/R AUDIO OUT [RCA] |
||
| Control Ports |
1 × RS-232 [3pin-3.81mm phoenix connector] 1 × IR EXT [3.5mm, Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions |
220mm [W] × 100mm [D] × 30mm [H] |
||
| Weight |
590g |
||
| Power Supply |
Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
||
|
Power Consumption |
5.5W (Max) |
||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | ||
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
|
Video Resolution |
4K60 | 4K24 | 1080P60 |
|
HDMI Cable Length (HDMI IN / OUT) |
8m/26ft |
10m/32ft |
15m/49ft |
|
The use of “Premium High Speed HDMI” cable is highly recommended. |
|||
