☆ HDMI 2.0b, HDCP 2.2 / HDCP 1.x and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution is up to 4k2k@60Hz YUV 4:4:4
☆ The maximum transmission distance via a single CAT6a/7 cable:
230ft / 70 meters for 1080P60Hz resolution;
164ft / 40 meters for 4K2K@60Hz 4:4:4 resolution
☆ Support ARC (Audio Return Channel) function
☆ With bi-directional IR, RS-232 and CEC pass-through
☆ HDR and Dolby Vision supported
☆ Support PoC (Power over Cable) function
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 / HDCP 1.x | ||
| Video Bandwidth | 18Gbps | ||
| HDMI Input / Output Video Resolution |
4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200 |
||
| Extended Distance | 70 meters (resolution is up to 1080P60Hz) 40 meters (resolution is up to 4K60Hz 4:4:4) |
||
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8-bit,10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)] |
||
| HDR formats | HDR10, HDR10+, Dolby Vision | ||
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
| L/R Audio Formats | PCM2.0CH Note that If ARC function is on, the audio port will mute. |
||
| Optical Audio Formats | LPCM2.0, Dolby Digital / Plus, DTS | ||
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
||
| Connections | |||

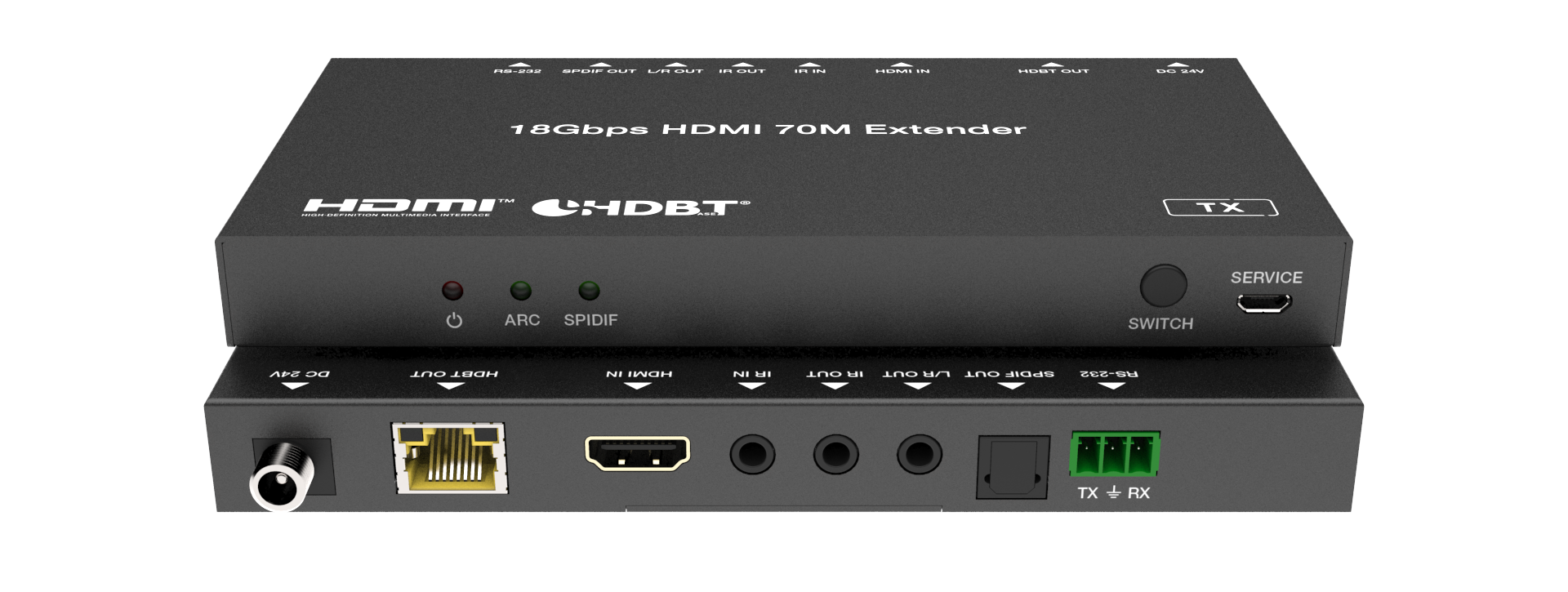

| Transmitter | Input: 1x HDMI (IN) TypeA [19-pin female] Output: 1x HDBT [RJ45] 1x L/R Stereo (OUT) [3.5mm Stereo Mini-jack] 1x SPDIF (OUT) [S/PDIF] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 (OUT) [Phoenix jack] 1x Service [Micro-USB jack] |
||

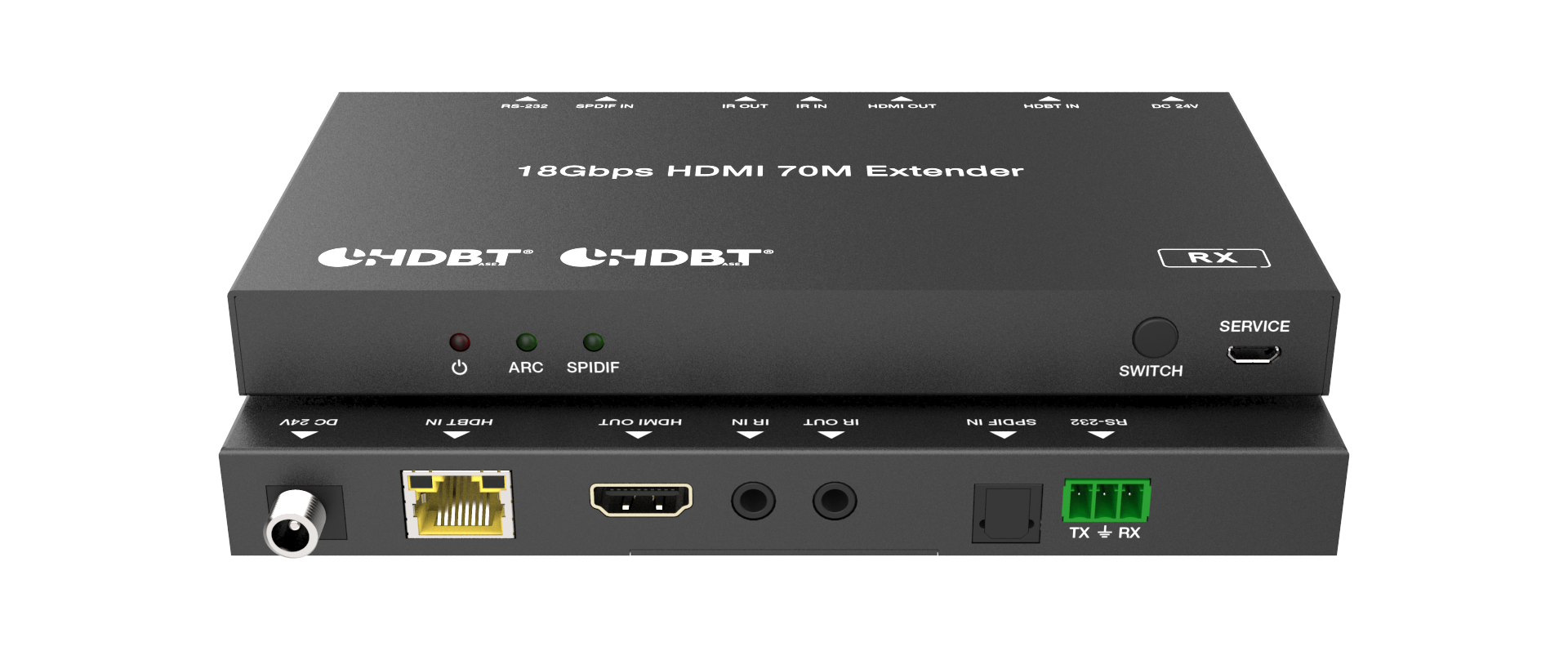

| Receiver | Input: 1x HDBT [RJ45] 1x SPDIF (IN) [S/PDIF] Output: 1x HDMI (OUT) TypeA [19-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 (OUT) [Phoenix jack] 1x Service [Micro-USB jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver:165mm (W)×88.3mm (D)×20mm (H) | ||
| Weight | Transmitter: 170g, Receiver: 165g | ||
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 24V/1A (Locking connector) |
||
| Power Consumption | 13W (max) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
