☆ HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ The maximum extended transmission distance via a single Cat5e/6 cable:
394ft / 120 meters for 4K2K signal;
492ft / 150 meters for 1080P signal
☆ Support one HDMI loop output on the transmitter
☆ De-embeded audio to analog stereo output on receiver
☆ With bi-directional IR, RS-232 and CEC pass-through
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Support PoC (Power over Cable) function
☆ Compact design for easy and flexible installation
| Technical | |||
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
||
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | ||
| L/R Audio Formats | PCM 2.0 | ||
| ESD Protection | 150m/492ft at 1080P@60 | ||
| Connections | |||
| Transmitter | Input: 1x HDMI IN [TypeA 19-pin female] 1x LINE IN [3.5mm Stereo Mini-jack] Output: 1x HDBT OUT [RJ45 8-pin female] 1x HDMI OUT [TypeA 19-pin female] Control: 1x AUDIO DIP Switch [1 pin] 1x EDID DIP Switch [2-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x Service [Micro-USB jack] |
||

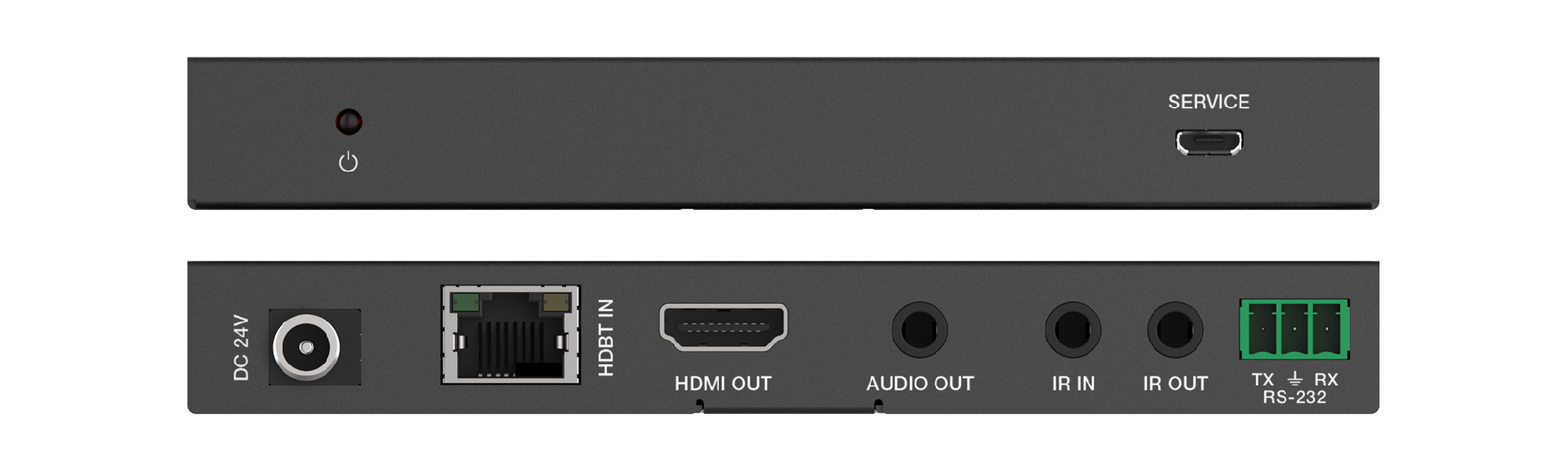

| Receiver | Input: 1x HDBT IN [RJ45 8-pin female] Output: 1x HDMI OUT [TypeA 19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x RS-232 [Phoenix jack] 1x SERVICE [Micro-USB jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
||
| Weight | Transmitter: 160g, Receiver: 155g | ||
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector) |
||
| Power Consumption (Max) | 9.36 W | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
