☆ POC (Power Over Cable) function is supported, either TX or RX is powered by24V@1A
power supply, the another does not need power supply from the DC jack. POC Power
consumption is less than 10W.
☆ Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
☆ UTP termination follows the standard of direct interconnection method.
☆ Transmission distance: ※Over CAT6 cable
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
☆ Support display resolutions up to 4K x 2K@30Hz
☆ Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
☆ Transfer Bidirectional Infrared control signal together with the HDMI signal.
☆ Transfer Bidirectional RS232 control signal together with the HDMI signal.
| Technical | |||
| Frequency Bandwidth | 297MHz[10.2Gbps] | ||

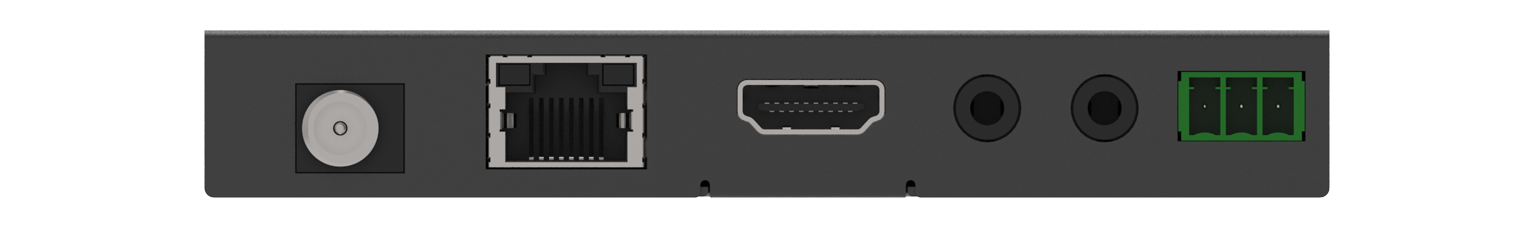

| Transmitter Input/Output | 1x HDMI Female port/1xCAT6 1x IR Tx/1x IR Rx/1xPhoenix |
||
| Receiver Input/Output Ports |
1x HDMI Female port/1xCAT6 1x IR Tx/1x IR Rx/1xPhoenix |
||
| Power Supply | DC 24V 1A | ||
| ESD Protection | Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
||
| Dimensions (mm) | 65[W] x 115 [D] x 17 [H] | ||
| Weight | 200g x 2 | ||
| Operating Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage Temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity | 20~90% RH (Non-condensing) | ||
| Power Consumption | 20W (Max) | ||
