☆ Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K2K@50/60Hz 4:4:4
☆ HDBaseT output can extend video transmission distance up to 230ft / 70mfor 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable
☆ Support 3D, HDR10 and Dolby Vision
☆ HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Support HDMI and MDP input
☆ US one-gang enclosure for Decora-style wall plate openings
☆ Input signal selection supports automatic mode and manual mode
☆ Support POE function (only from Receiver to Transmitter)
☆ Available in white or black coating
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| DP Compliance | Display Port 1.2a | ||
| Video Bandwidth | DP: 5.4 Gbps | ||
| HDMI: 18 Gbps | |||
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | ||
| Color Depth | 8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz) |
||
| HDR | Support | ||
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
| Transmission Distance | Max distance (1080P) : 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7 |
||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

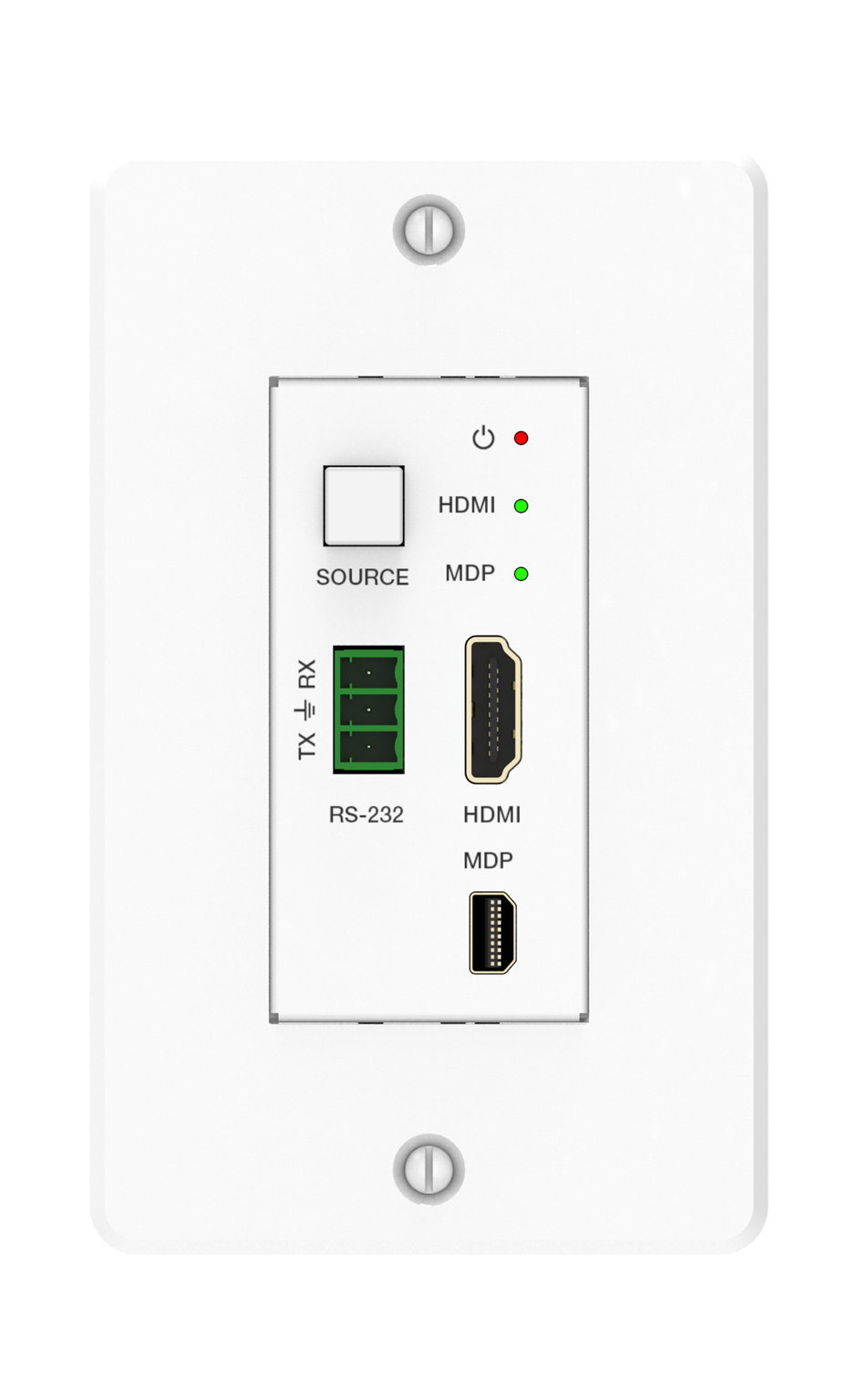

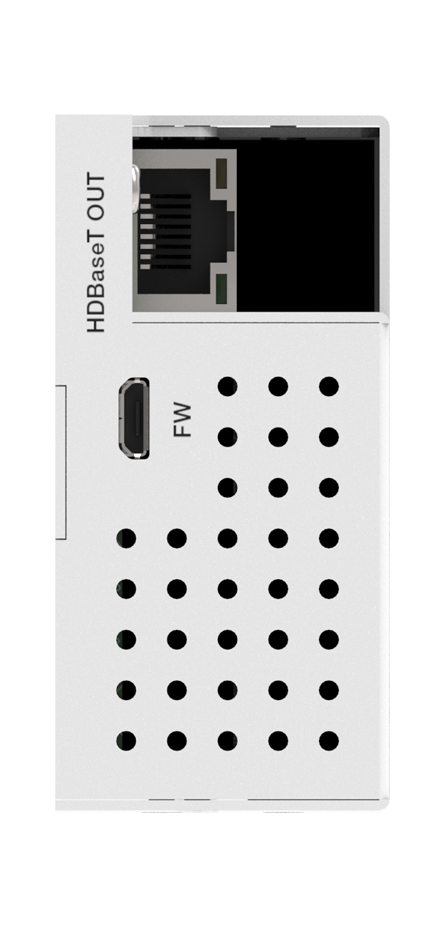

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x miniDP [20-pin female] Output: 1x HDBaseT Out [RJ45, 8-pin female] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port] |
||
| Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | White / Black | ||
| Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 102.8mm [D] x 22mm [H] |
||
| Weight | Wall plate: 189g, Receiver: 517g | ||
| Power Supply | POE (only from Receiver to Transmitter) | ||
| Power Consumption | Wall plate: 8W (Max), Receiver: 6W (Max) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
