☆ HDMI 2.0b and HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K@60Hz 4:4:4
☆ HDBaseT 1.0 VS010 transmitter
☆ HDBaseT output can extend signal transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K@60Hz via a single CAT6/6A cable
☆ HDMI Audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG
☆ Support two-way IR and RS-232 control
☆ POC 24V or local DC 24V power supply
☆ Built-in POC switch for protecting HDBaseT projector
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K@60Hz 4:4:4 | ||
| Video Compression Standard |
HDBT | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12bit | ||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
| IR Level | 5Vp-p | ||
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
| Transmission Distance | Max distance (1080p):230ft / 70m over CAT6/6A Max distance (4K@60):131ft / 40m over CAT6/6A |
||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

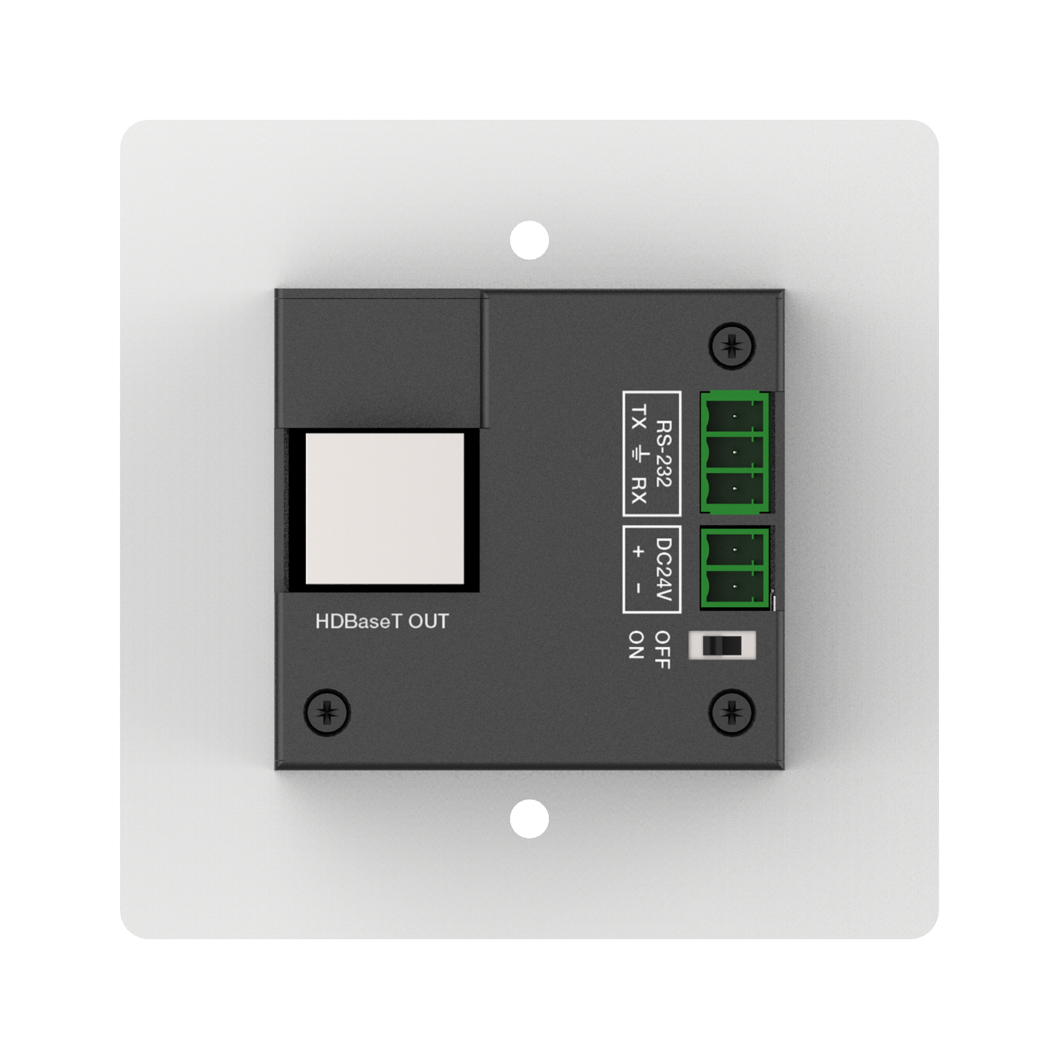

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Output: 1x HDBaseT Out [RJ45, 8-pin female] Control: 1x RS-232 [Phoenix jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] |
||
| Receiver | Input: 1x HDBT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] |
||
| Mechanical | |||
| Housing | Aluminium Enclosure — Front Panel Metal Enclosure — Rear Case |
||
| Color | White — Front Panel Black — Rear Case |
||
| Dimensions | Wall plate: 80mm [W] x 80mm [D] x 38mm [H] Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
||
| Weight | Wall plate: 157g, Receiver: 249g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | Wall plate: 3.36W, Receiver: 5.6W | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity | 20 - 90% RH (no condensation) | ||
