☆ HDMI 2.0b and HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K@60Hz 4:4:4
☆ Transmission distance can be extended up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal via a single CAT6/6a cable
☆ Transmitter supports audio embedding, Reciver supports audio de-embedding
☆ Support two-way IR and RS-232 control
☆ Standard 86mm×86mm wall box
☆ POC 24V or local DC 24V power supply
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K@60Hz 4:4:4 | ||
| Video Compression Standard |
HDBT | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12bit | ||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
| IR Level | 5Vp-p | ||
| IR Frequency | Wideband 20K-60KHz | ||
| Audio Formats | HDMI: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Analog: PCM 2.0 |
||
| Transmission Distance | 1080P--70m, 4K --40m (CAT6/6a) | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

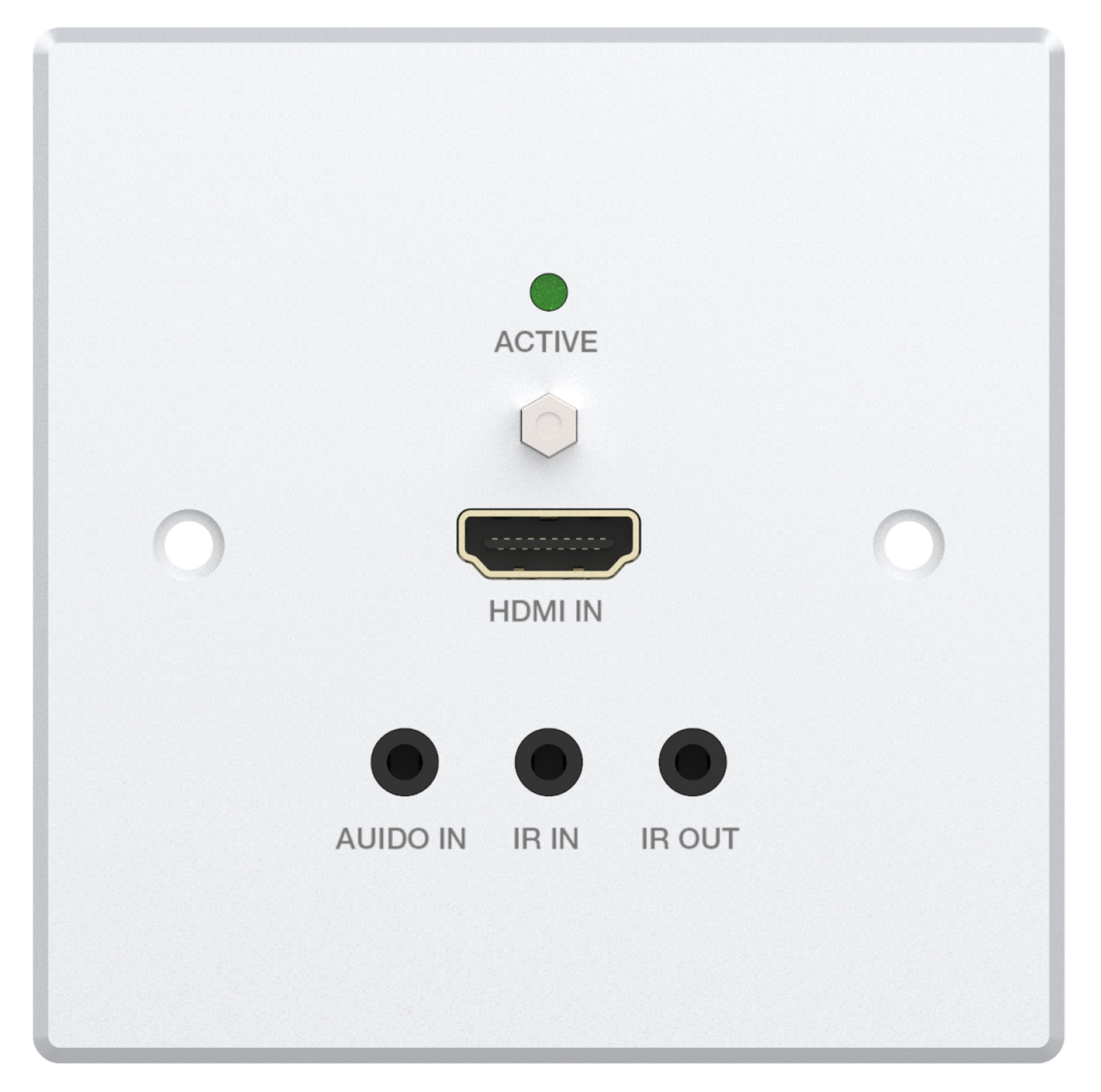

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] 1x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1x HDBaseT OUT [RJ45] Control: 1x RS-232 [Phoenix jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] |
||
| Mechanical | |||
| Housing | Aluminium Enclosure — Front Panel Metal Enclosure — Rear Panel |
||
| Color | White — Front Panel Black — Rear Panel |
||
| Dimensions | 86mm[W] x 86mm[D] x 38mm[H] | ||
| Weight | 185g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 9W (POC) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
