☆ HDMI 2.0b and HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Support HDMI video resolution up to 4K2K@60Hz (4:4:4), VGA video resolution up to 1920x1200@60Hz
☆ Up to 7.1 channels HD audio
☆ Transmission distance can be extended up to 230ft / 70m for 1080p60Hz signal or 131ft / 40m for 4K2K@60Hz (4:4:4) signal via a single CAT6/6a/7 cable
☆ Automatic and manual switching modes
☆ Two-way IR, RS-232 and USB supported
☆ 2-Gang US Decora Wall-plate
☆ 24V POC is supported
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz 4:4:4 | ||
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 | ||
| Color Depth | 8-bit, 10-bit, 12-bit | ||
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
| Transmission Distance | 328ft / 100m over CAT6/6a/7 | ||
| VGA Video Resolution | Up to 1920x1200@60Hz | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

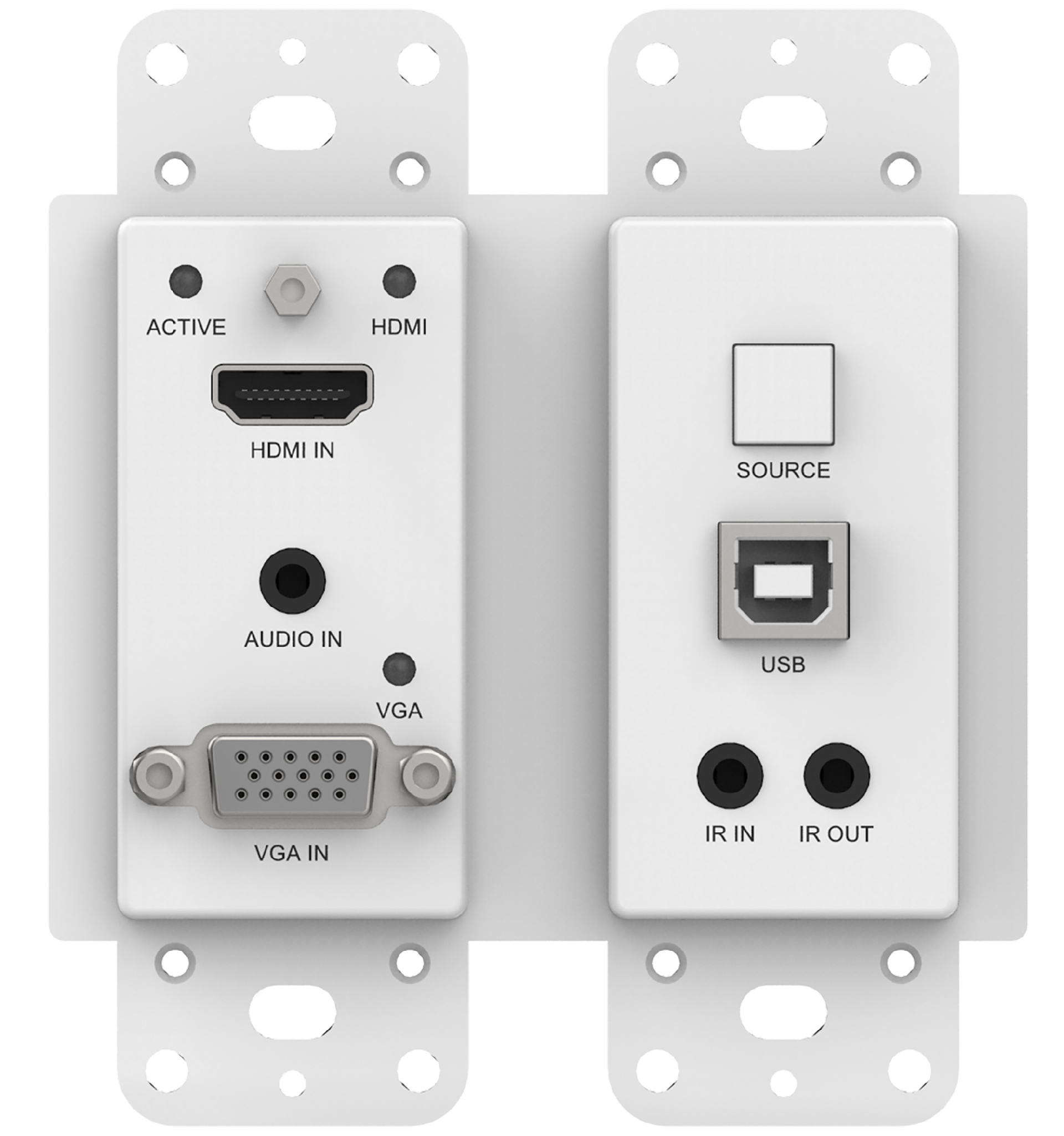

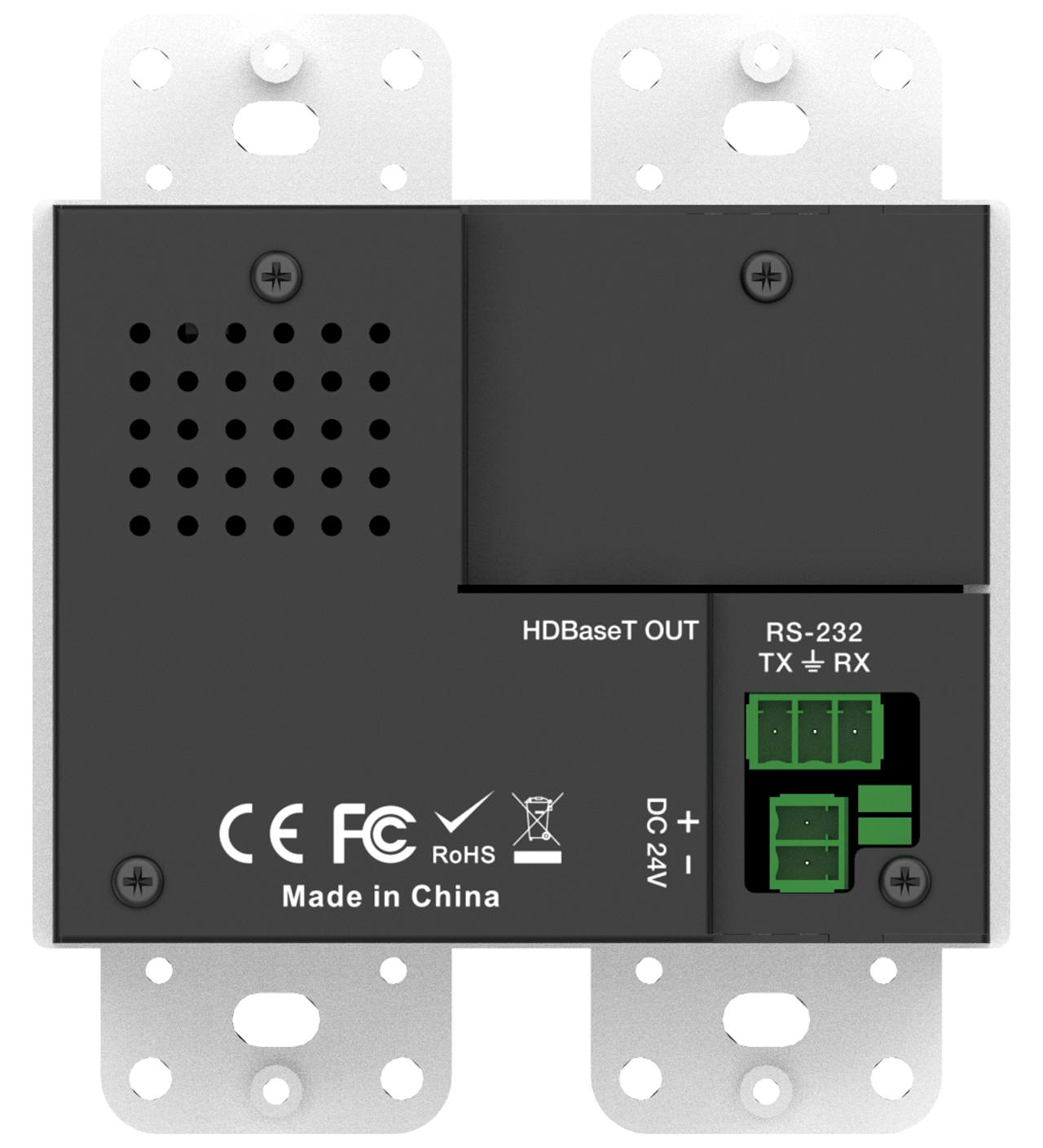

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x VGA [15-pin female] 1x USB [USB-B, 4-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1×AUDIO IN [3.5mm Stereo Mini-jack] Outputs:1x HDBaseT Out [RJ45] 1x IR OUT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Plastic Enclosure | ||
| Color | White | ||
| Dimensions | 91.8mm [W] x 104.8mm [D] x 43mm [H] | ||
| Weight | 212.5g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 6W (Max) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |   20 - 90% RH (no condensation) |
||
