☆ HDMI2.0b and HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
☆ The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG
☆ Support bi-directional IR control signal pass-through
☆ Audio formats: LPCM 7.1, Dolby True HD, DTS HD Master
☆ EDID copy pass-through function between the source device and display device
☆ Support ARC and audio de-embedding, audio is output through the optical fiber port of the receiver
☆ Support bi-directional POC (Power over Cable) function
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 1.4 and HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz | ||
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 | ||
| Color Depth | 10-bit, 12-bit | ||
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | ||
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

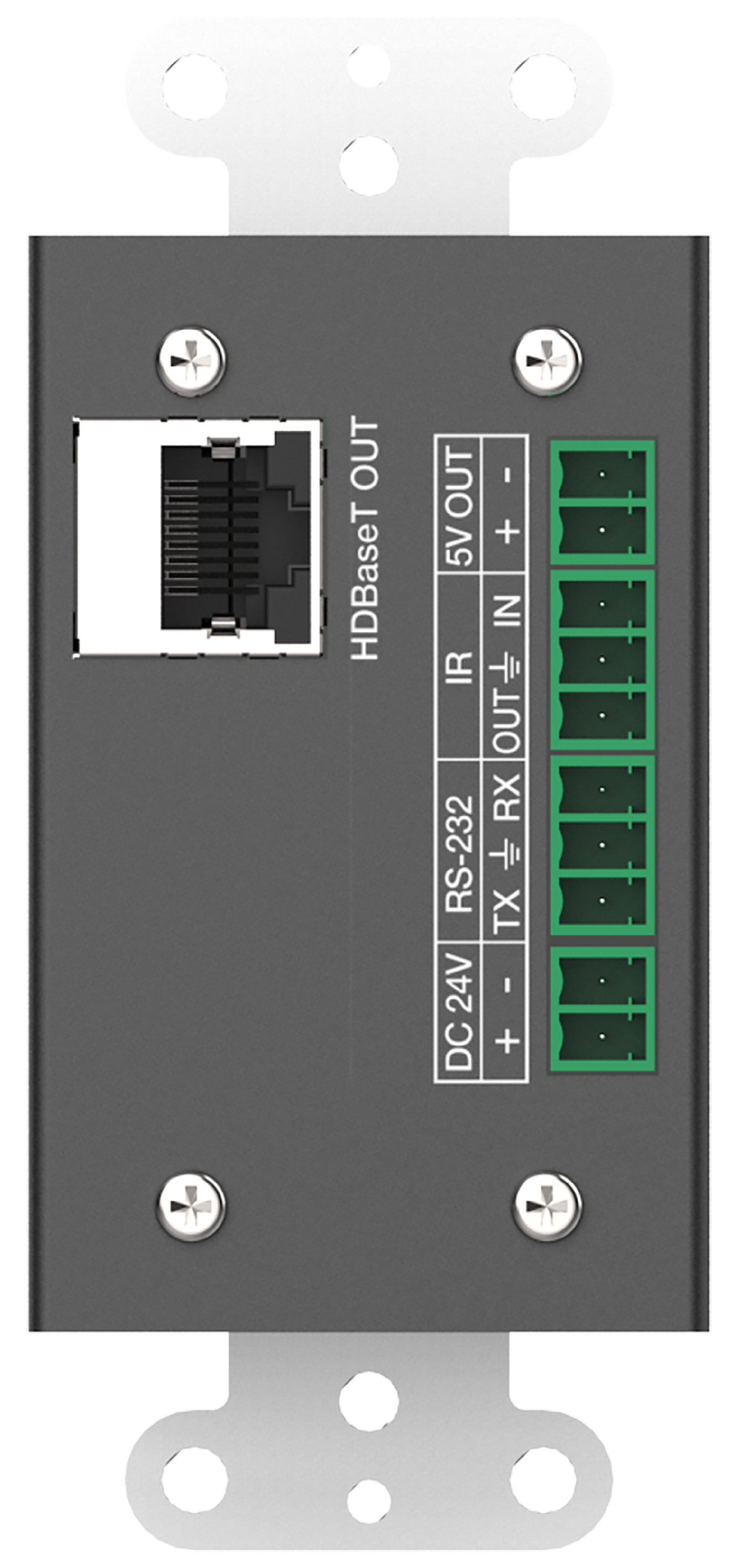

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x IR INPUT [Phoenix jack] 1x RS-232 [Phoenix jack] Outputs: 1x HDBaseT Out [RJ45] 1x IR OUTPUT [Phoenix jack] 1x RS-232 [Phoenix jack] |
||
| Mechanical | |||

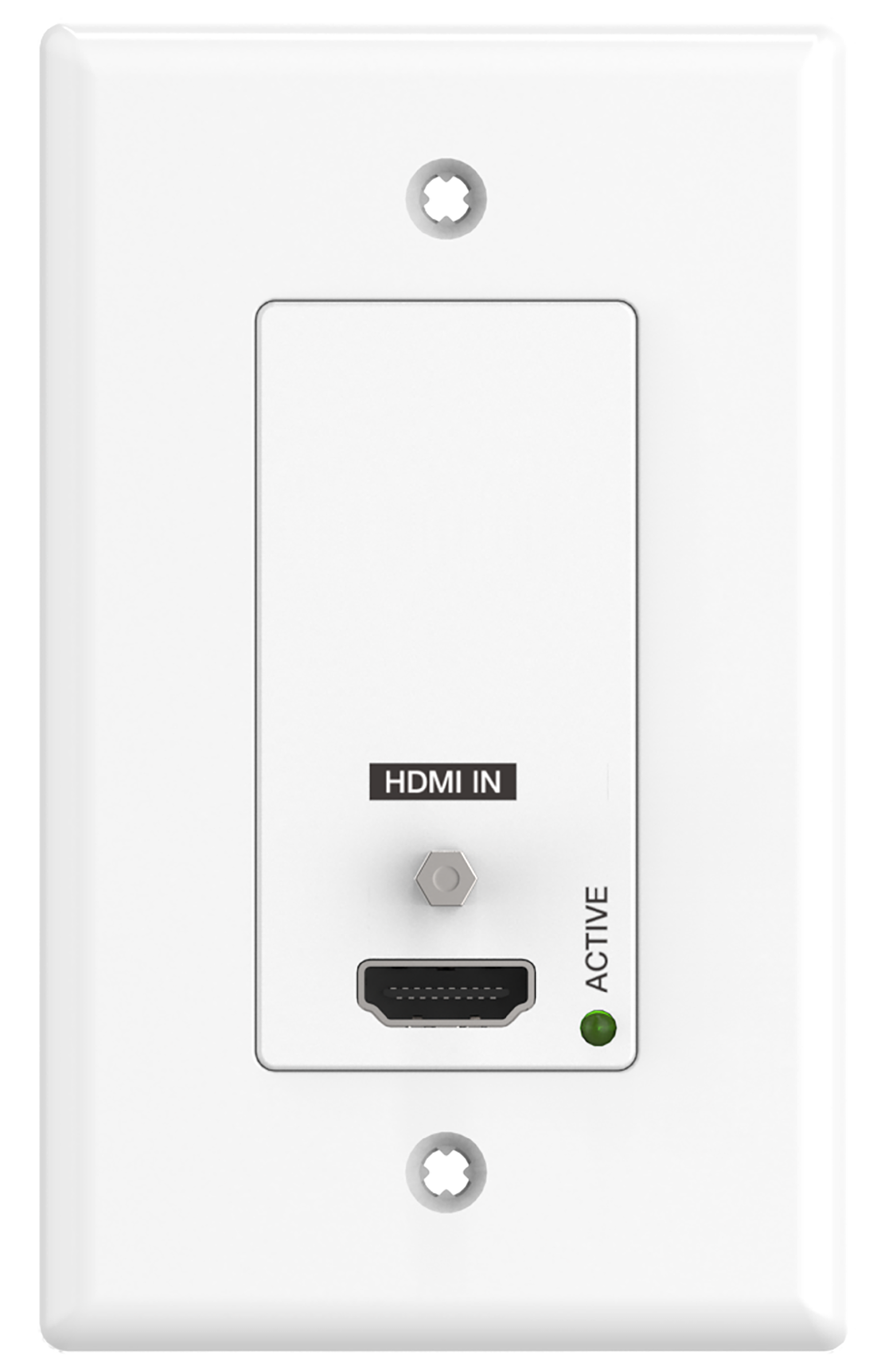

| Housing | Plastic-Front Panel, Metal-Rear Case | ||
| Color | White-Front Panel, Black-Rear Case | ||
| Dimensions | 103.5mm [W] x 46mm [D] x 30mm [H] | ||
| Weight | 163g | ||
| Power Supply |
Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 9W (Max) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
