☆ HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Supports 18Gbps bandwidth
☆ Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters
☆ Supports one HDMI loop output
☆ Supports one-way IR pass-through
☆ Supports HDR function
☆ Supports PoC (Power over Cable) function, it means that either transmitter or receiver is powered supply by 12V/1A power adapter, the other doesn’t need power supply.)
☆ Supports automatic copy EDID function
☆ Compact design for easy and flexible installation.
| Technical | ||
| HDMI 2.0 | ||
| HDCP 2.2 / HDCP 1.4 | ||
| 18Gbps | ||
| Up to 4K60Hz 4:4:4 | ||
| RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 | ||
| 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
||
| LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | ||
| Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | ||

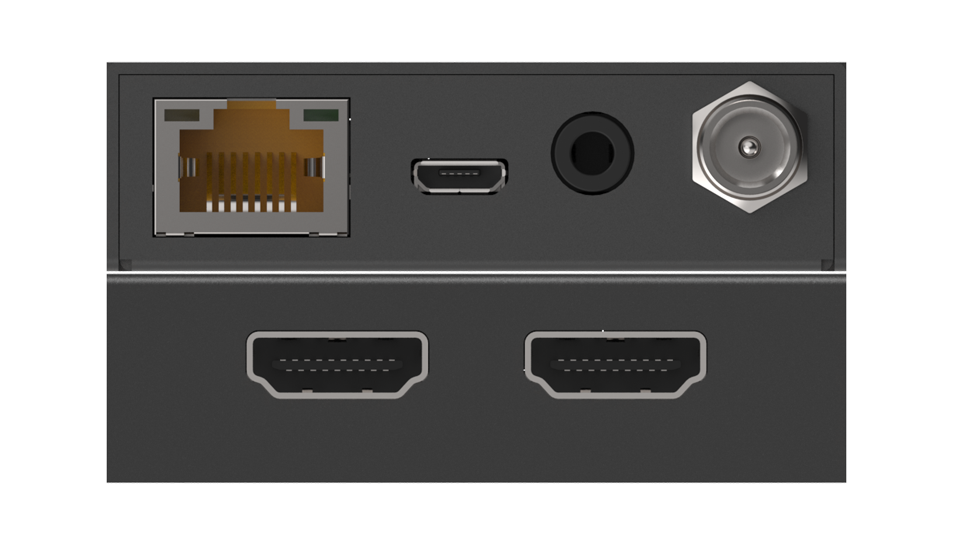

| Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] |
||

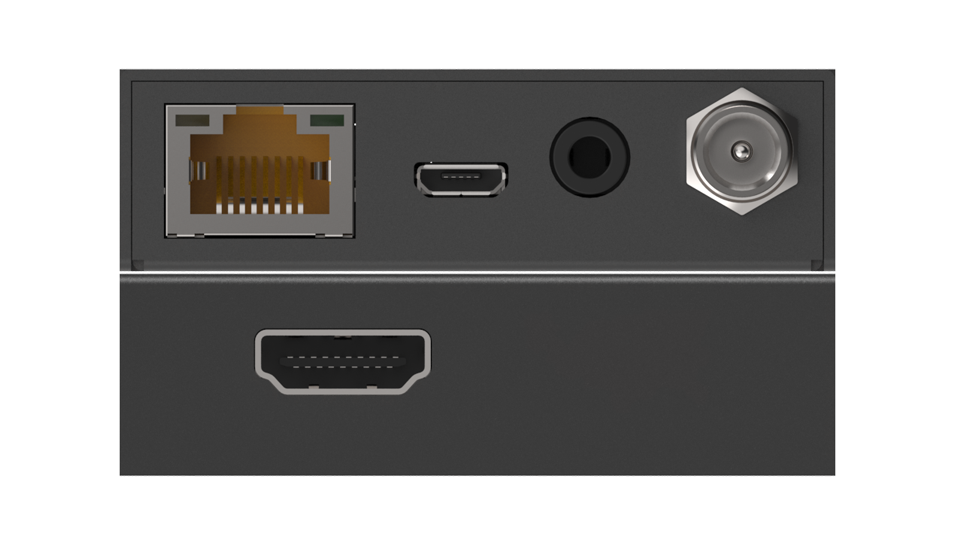

| Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] |
||
| Mechanical | ||
| Metal Enclosure | ||
| Black | ||
| Transmitter / Receiver: 61mm [W] x 88mm [D] x 18mm [H] |
||
| Transmitter: 160g, Receiver: 155g | ||
| Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A |
||
| 3.84 W | ||
| 32°F - 104°F / 0°C - 40°C | ||
| -4°F - 140°F / -20°C - 60°C | ||
 20 - 90% RH (no condensation) |
||
| 4K60 - Feet / Meters | 4K30 / 1080P - Feet / Meters | |
| 164ft / 50M | 164ft / 50M | |
| 197ft / 60M | 230ft / 70M | |
| 10ft / 3M | 30ft / 10M | |
| The use of “Premium High Speed HDMI” cable is highly recommended. |
||
