☆ HDMI 1.4 and HDCP 1.4 compliant
☆ Support video resolution up to 4K@30Hz
☆ The maximum transmission distance via a single CAT6/5E cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
☆ Support copying EDID from receiver display or loop out display
☆ Allow for cascading via additional HDMI loop out port
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 1.4 | ||
| HDCP Compliance | HDCP 1.4 | ||
| Video Bandwidth | 10.2Gbps | ||
| Video Resolution | Up to 4K@30Hz | ||
| Audio Support | Up to 7.1CH HD audio | ||
| Input TMDS Signal | 3.3 volts | ||
| Input DDC Signal | 5.0 volts/P-P | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

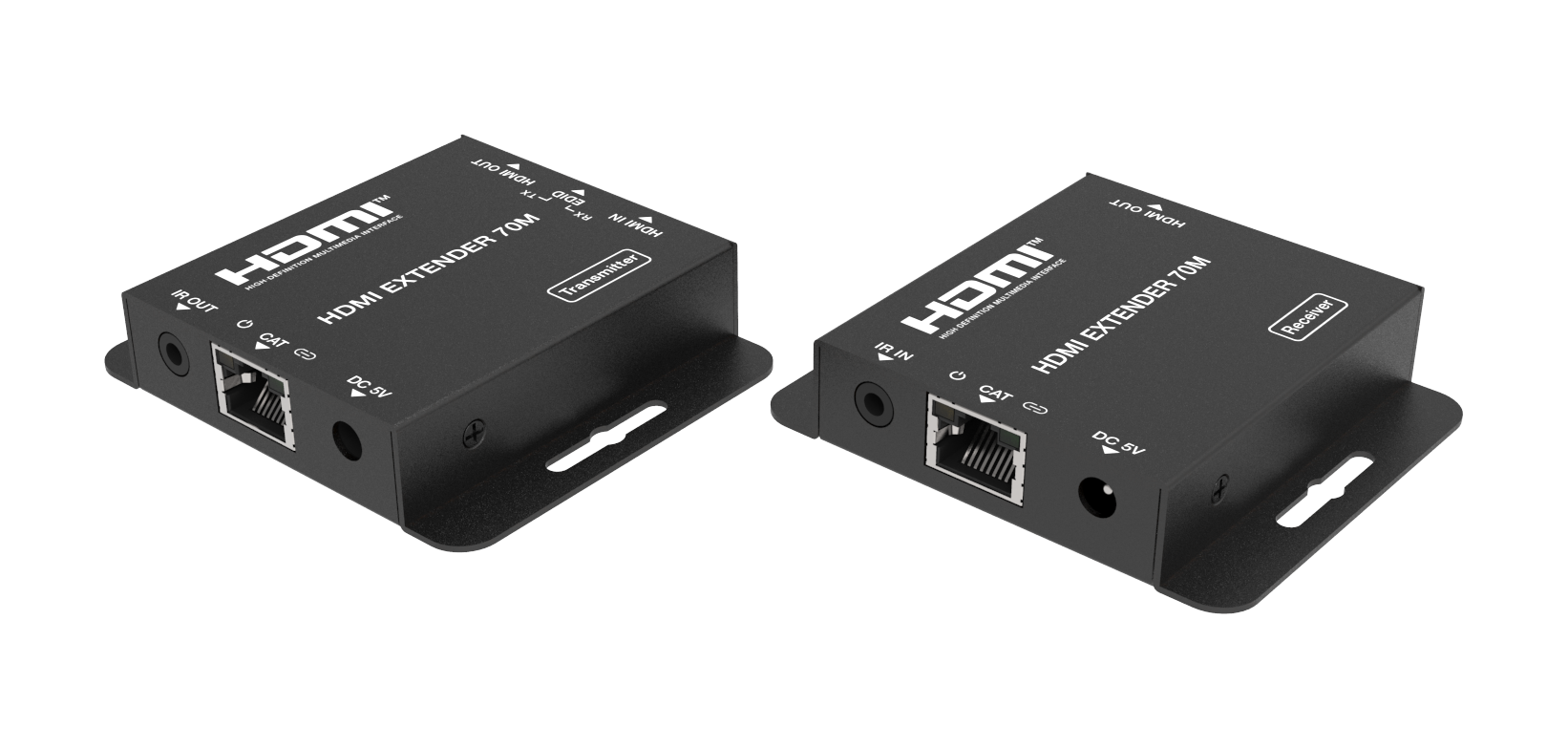

| Transmitter | Input: 1x HDMI Type A [19-pin female] Outputs:1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] |
||

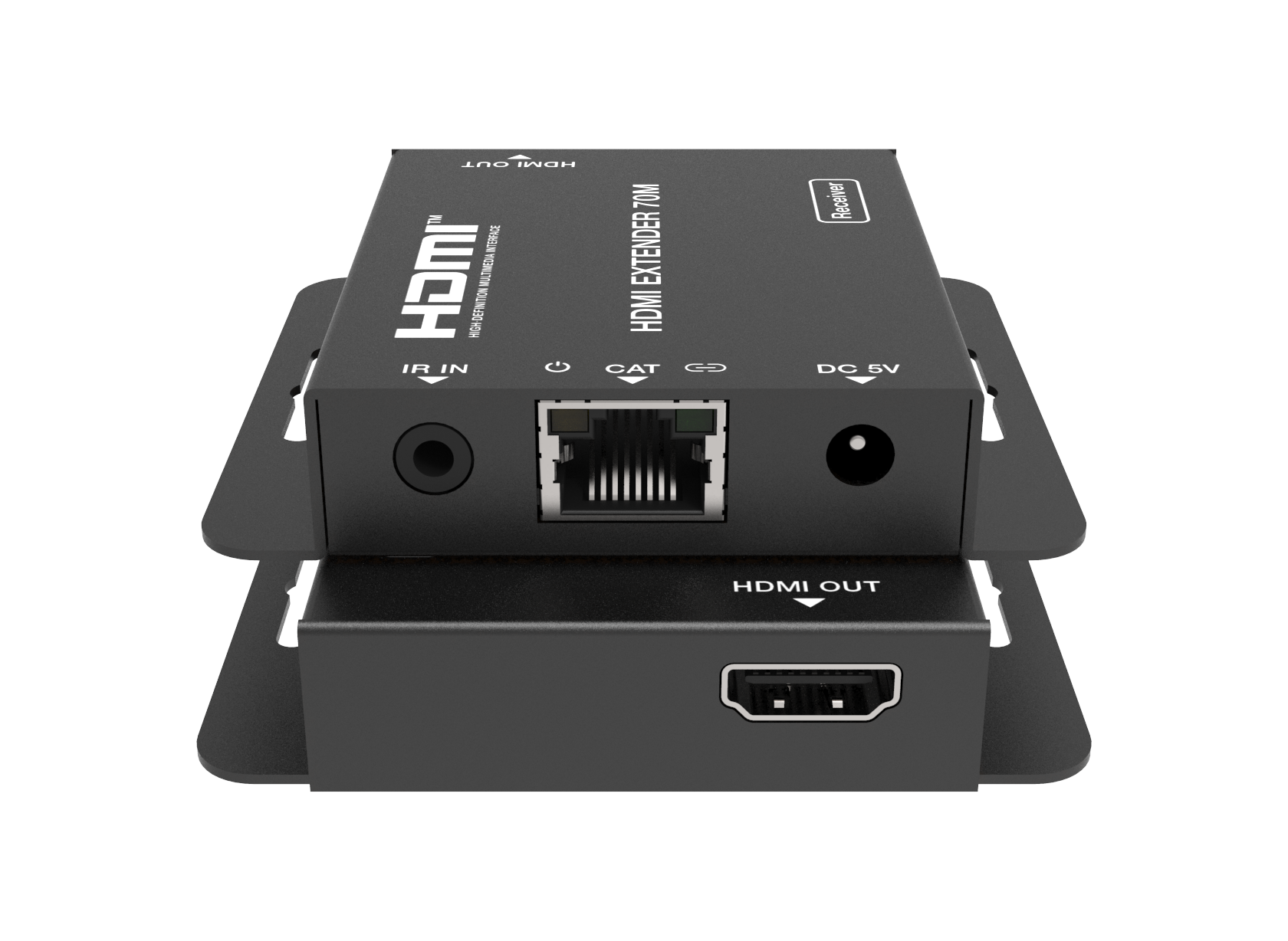

| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 79.5mm[W] x 69mm[D] x 16.5mm[H] | ||
| Weight | Transmitter: 132g, Receiver: 130g | ||
| Power Supply | 5V/1A DC | ||
| Power Consumption | Transmitter: 1.86W, Receiver: 0.87W | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
