☆ Compliant with HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0
☆ Support 18Gbps video bandwidth ☆ Support resolution up to 4K2K@60Hz 4:4:4
☆ Support HLG, HDR 10, HDR 10+ and dolby vision
☆ Built-in TMDS equalization and CDR (Clock Rate Recovery) for extending HDMI cable distance
☆ Support transmission distance up to 8m at the resolution of 4K2K@50/60Hz(YUV_444), 15m at 4K2K@60Hz(YUV_420) and 20m at 1080p@60Hz
☆ Require the HDMI source device to output power to the unit via an HDMI cable
☆ Simple plug and play, no drive and installation setting are required
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.0 | ||
| HDCP Compliance | HDCP 2.2 / 1.x | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4k2k@60Hz YUV 4:4:4 | ||
| Color Space | RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0 | ||
| Color Depth | 8-bit,10-bit,12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
||
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dollby-TrueHD, DTS-HD | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

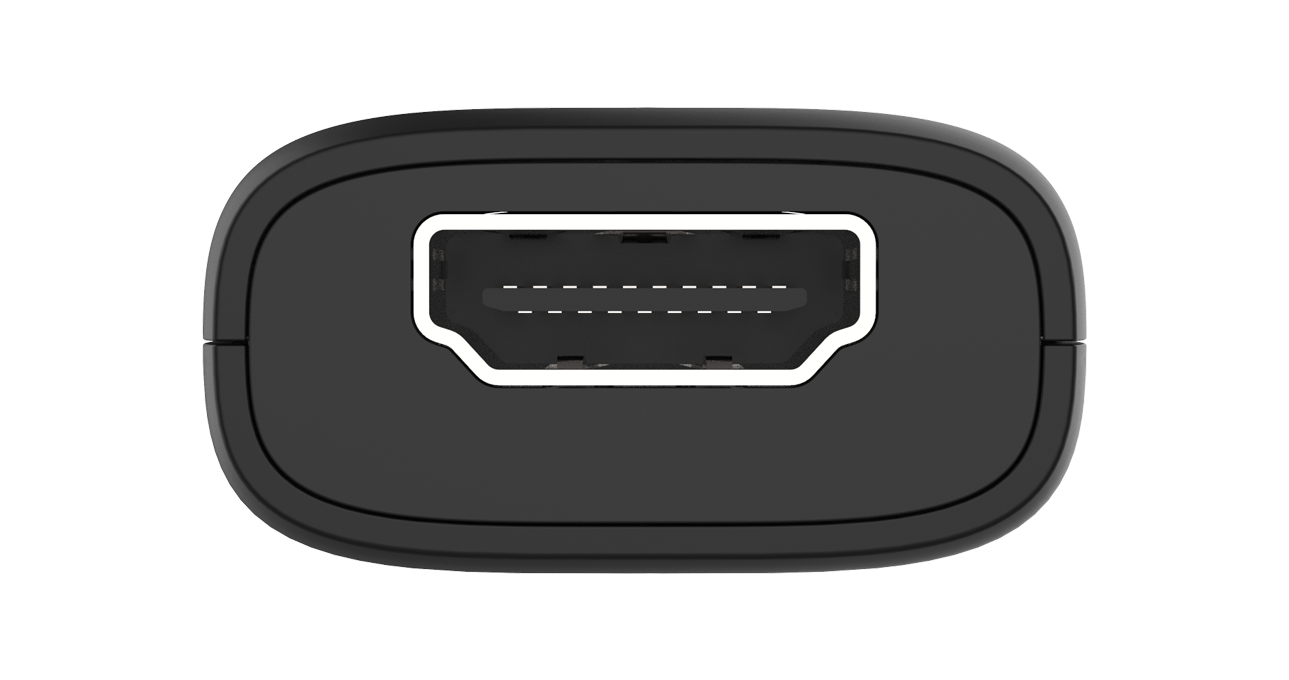

| Input | 1x HDMI Type A [19-pin female] | ||
| Output | 1x HDMI Type A [19-pin female] | ||
| Mechanical | |||
| Housing | Plastic Enclosure | ||
| Color | Black | ||
| Dimensions | 48.6mm[W] x 25mm[D] x 15mm[H] | ||
| Weight | 13g | ||
| Power Supply | HDMI | ||
| Operation Temperature | 32°F - 104°F / 0°C -40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity | 20 - 90% RH (no condensation) | ||
