☆ HDMI2.0b and HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
☆ The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG
☆ Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+)
☆ Support 3.5mm analog audio de-embedding, audio is output through the L/R OUT port of the receiver
☆ EDID copy pass-through function between the source device and display device
☆ Support bi-directional POC (Power over Cable) function
☆ With USB KVM pass-through function, USB1.1 compliant, support remote-control by keyboard and mouse
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 | ||
| Transmission Distance |
4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6 cable) | ||
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12bit | ||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
| Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+) |
||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

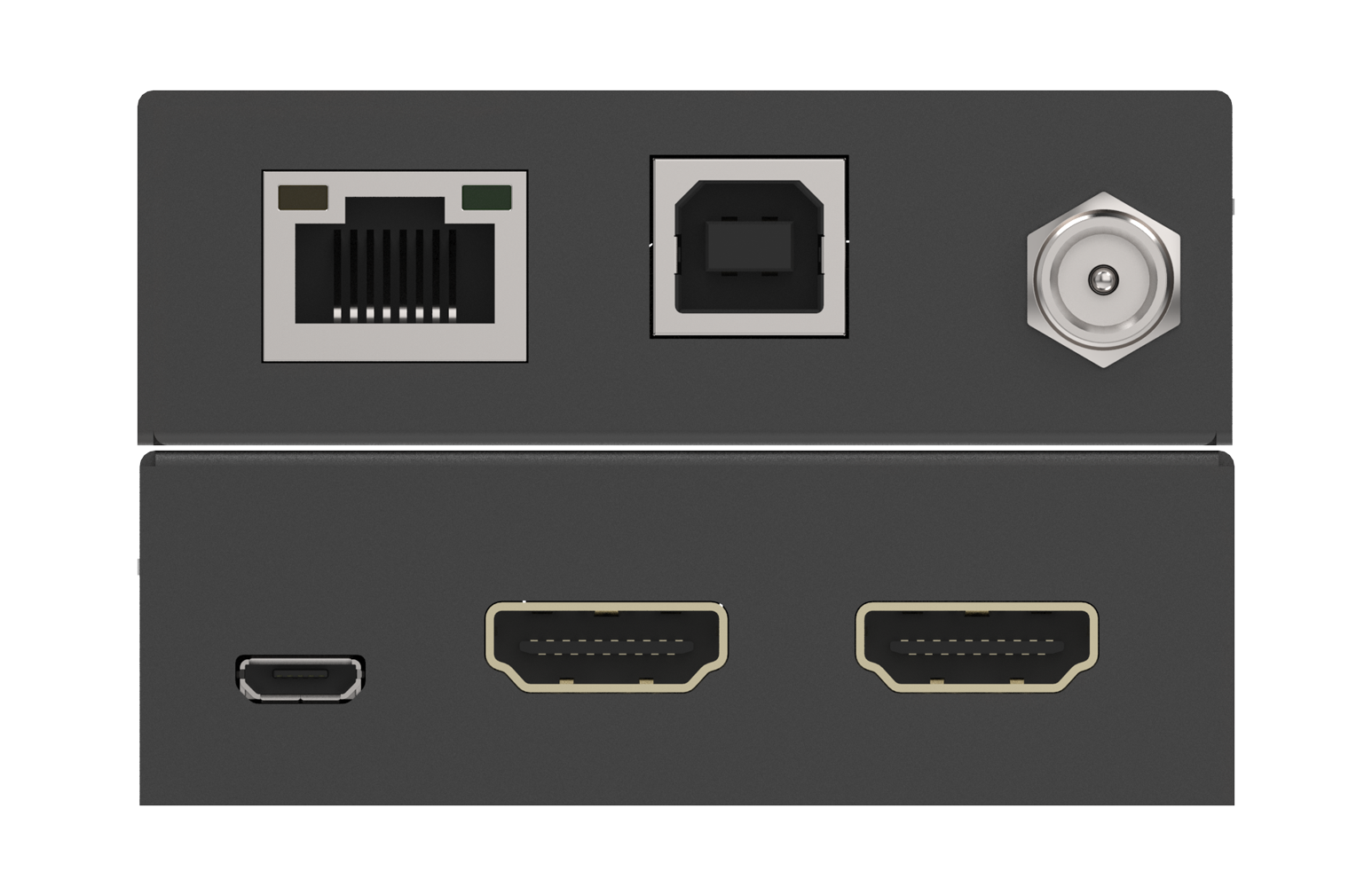

| Transmitter | Input: 1x HDMI IN [TypeA, 19-pin female] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x CAT OUT [RJ45] Control: 1x SERVICE [Micro-USB jack] 1x USB port [Type-B jack] |
||

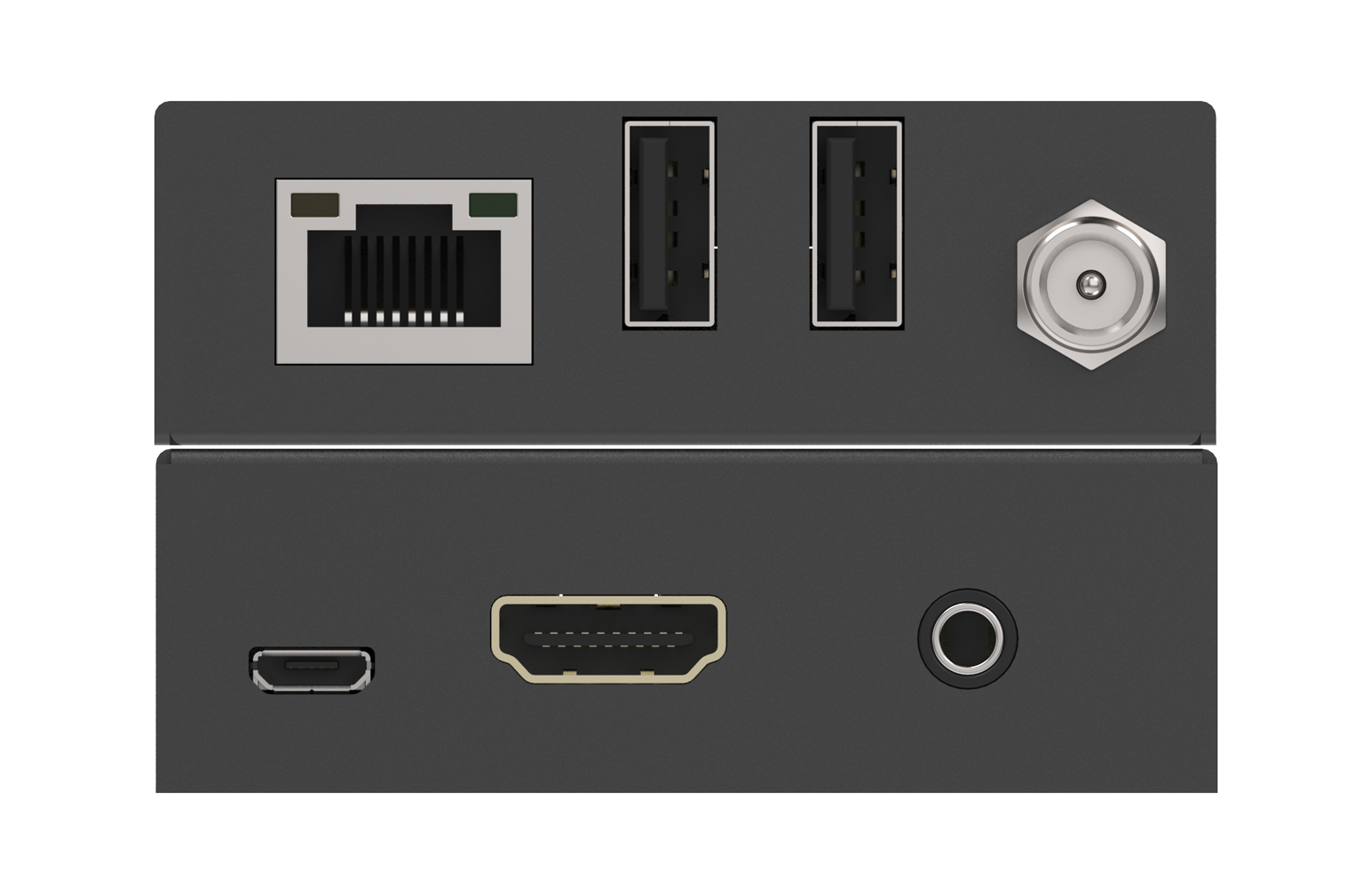

| Receiver | Input: 1x CAT IN [RJ45] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x L/R OUT [3.5mm Stereo Mini-jack] Control: 1x SERVICE [Micro-USB jack] 2x USB port [Type-A jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: 90mm (W)×68mm (D)×22mm (H) | ||
| Weight | Transmitter: 170g, Receiver: 169g | ||
| Power Supply | DC 12V/1A; Support bi-directional POC function |
||
| Power Consumption | 4.2 W (max) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
