☆ HDMI 1.3 and HDCP 1.4 compliant
☆ Support 148.5MHz video bandwidth
☆ Video resolution is up to 1920×1080@60Hz
☆ Signal transmission distance up to 150m/492ft via a single CAT5e/6 cable
☆ Adopt standard H.265 encoding & decoding technology
☆ Support 1G standard IP Swtich/router/hub
☆ Support one-to-one and one-to-many connection modes
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 1.3 | ||
| USB Version | HDCP 1.4 | ||
| Video Bandwidth | 148.5MHz | ||
| Video Resolution | Input: Up to 1920x1200@60Hz Output: Up to 1920x1080@60Hz |
||
| HDMI Audio Formats | LPCM 2.0CH, 32KHz/44.1KHz/48KHz | ||
| Compression Technology |
H.265 | ||
| Video Network Bandwidth |
1G | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 | ||
| Color Depth | Input: 8/10/12-bit Output: 8bit |
||
| Transmission Distance |
150m/492ft (via a single CAT5e/6 cable) | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

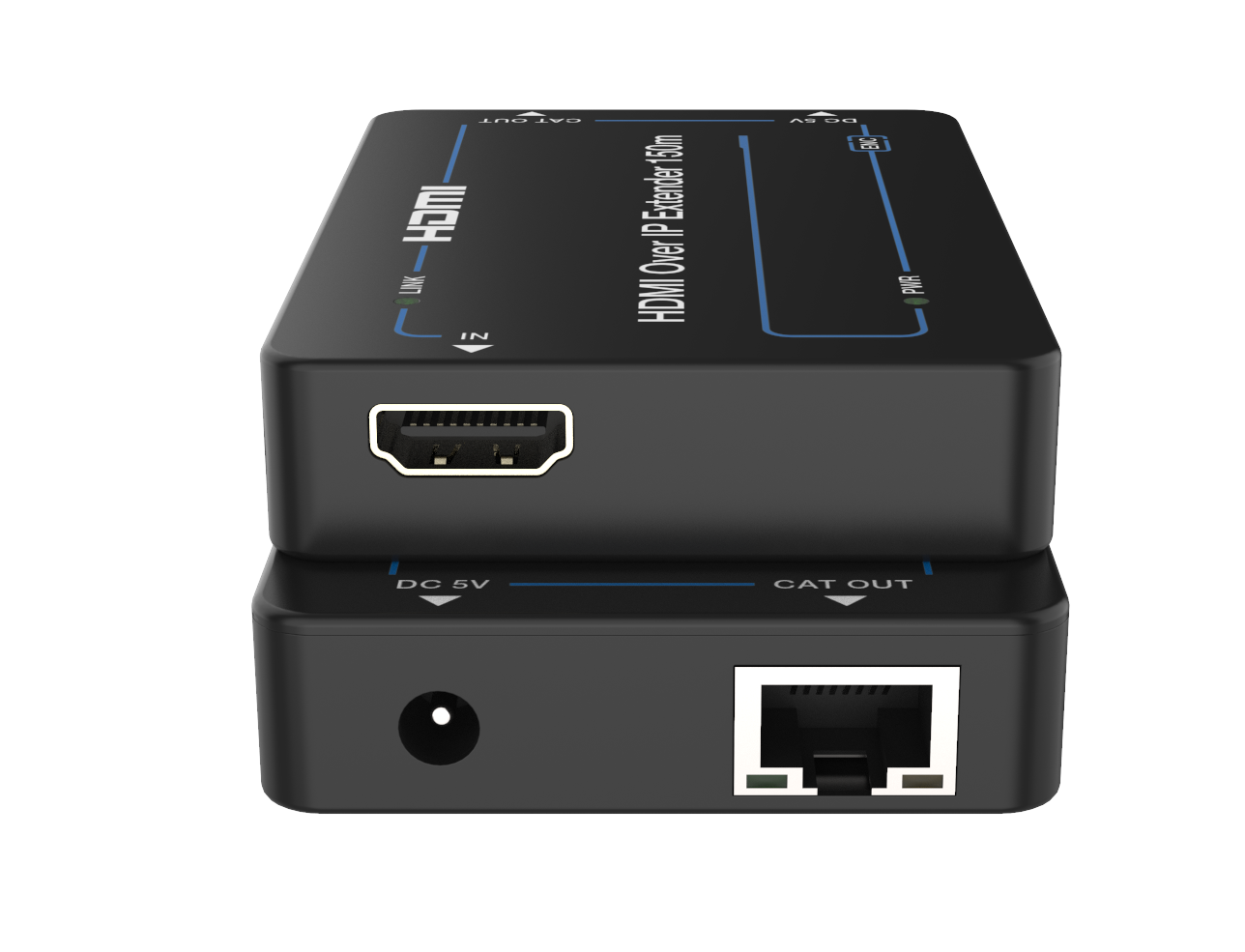

| Encoder | Input: 1x HDMI IN [Type A, 19-pin female] Output: 1x CAT OUT [RJ45 connector] |
||
| Decoder | Input: 1x CAT IN [RJ45 connector] Output: 1x HDMI OUT [Type A, 19-pin female] |
||
| Mechanical | |||
| Housing | Plastic Enclosure | ||
| Color | Black | ||
| Dimensions | 90mm (W) x 60mm (D) x 16mm (H) | ||
| Weight | Encoder: 51g, Decoder: 52g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
||
| Power Consumption | Encoder: 1.7W, Decoder: 1.2W | ||
| Operation Temperature | 14°F - 122°F / -10°C - 50°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
