☆ HDMI 1.3 and HDCP 1.4 compliant
☆ Support 6.75Gbps video bandwidth
☆ Video resolution is up to 1920×1200@60Hz
☆ Extend distance up to 492ft / 150m between encoder and decoder via a single CAT5e/6 cable
☆ Adopt standard H.265 encoding / decoding
☆ Support standard IP swticher / router / hub
☆ Support one-way IR control signal transmission
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 1.3 | ||
| USB Version | HDCP 1.4 | ||
| Video Bandwidth | 6.75Gbps | ||
| Video Resolution | 640x480@60Hz-1920x1200@60Hz | ||
| HDMI Audio Formats | LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz | ||
| IR Frequency | 20Hz - 60KHz | ||
| Compression Technology |
H.265 | ||
| Request for Switcher /Router |
Support IGMP, Support DHCP | ||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | ||
| Color Depth | 8-bit | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

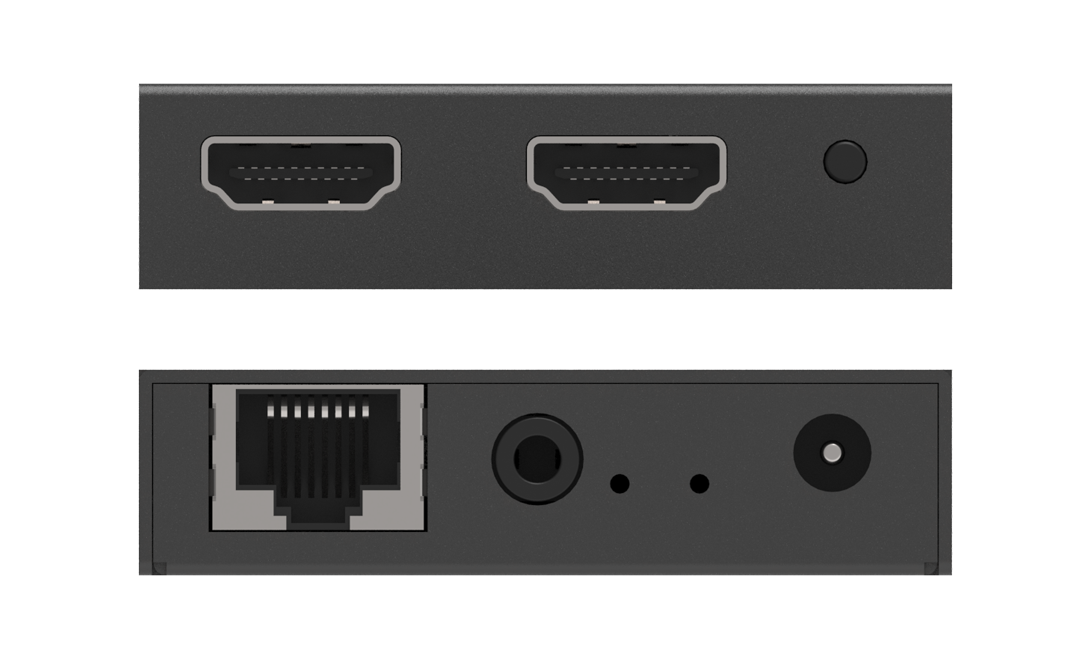

| Encoder | Input: 1x HDMI IN [Type A 19-pin female] Output: 1x HDMI OUT [Type A 19-pin female] 1x CAT OUT [RJ45 connector] Control:1x IR OUT [3.5mm Stereo Mini-jack] |
||

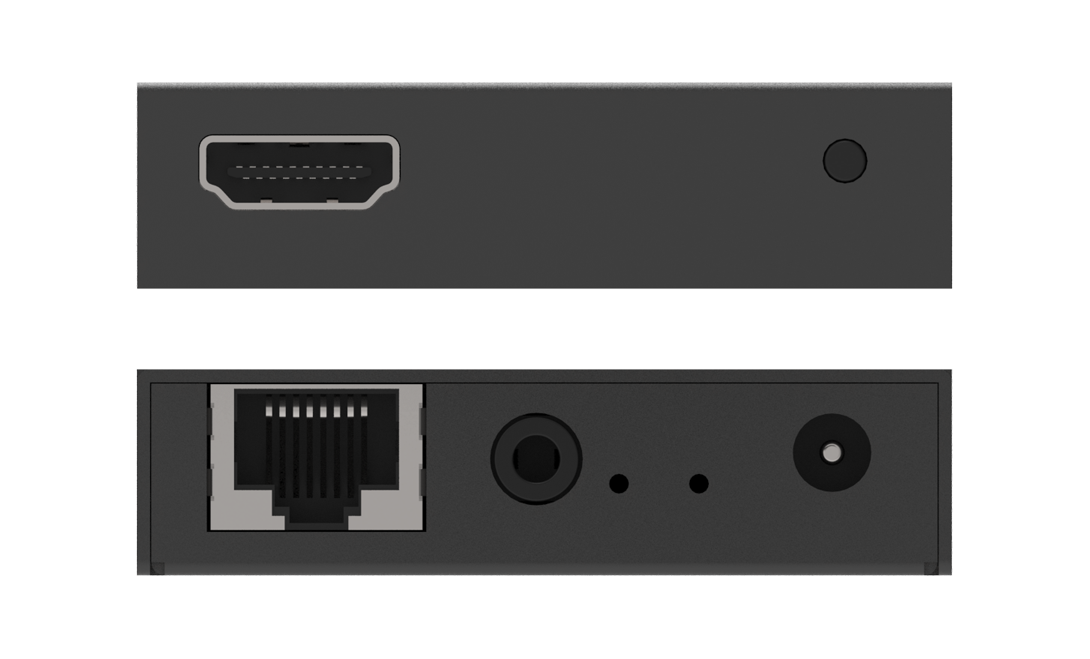

| Decoder | Input: 1x CAT IN [RJ45 connector] Output: 1x HDMI OUT [Type A 19-pin female] Control:1x IR IN [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 88mm (W) x 61.2mm (D) x 16.5mm (H) | ||
| Weight | Encoder: 158g, Decoder: 155g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
||
| Power Consumption | Encoder: 2.55W, Decoder: 3.7W | ||
| Operation Temperature | 14°F - 122°F / -10°C - 50°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
| Resolution / Distance |  1920x1200@60Hz - Feet / Meter |
||
| CAT 5e/6 cable | 492ft / 150 meters |
||
| Resolution / Cable length | 1920x1200@60Hz - Feet / Meter |
||
| HDMI IN / OUT | 50ft / 15 meters |
||
