☆ HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
☆ Transmit one HDMI HD source signal to one HDMI HD display via wireless technology
☆ With one-way IR control
☆ Input video resolution is up to 1920×1080@60Hz YCbCr 4:4:4; Output video resolution is up to 1080P@60Hz YCbCr 4:4:4
☆ HDMI wireless transmission distance up to 330ft/100m. (In an open environment without Wi-Fi interference.)
☆ Supported HDMI audio formats:
Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz
Output: LPCM 2.0CH 48KHz
☆ Adopt H.265 high performance codec technology
☆ End-to-end delay is less than 120Ms
☆ Compact design for easy and flexible installation.
| Technical | |||
| HDMI Compliance | HDMI 1.3 | ||
| USB Version | HDCP 1.4 | ||
| Video Bandwidth | 4.95Gbps | ||
| Video Resolution | Input: Up to 1920×1080@60Hz Output: Up to 1080P@60Hz |
||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 | ||
| Color Depth | 8/10/12-bit (1080P@60Hz) | ||
| HDMI Audio Formats | Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz/ 88.2KHz/96KHz/176.4KHz/192KHz Output: LPCM 2.0CH 48KHz |
||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

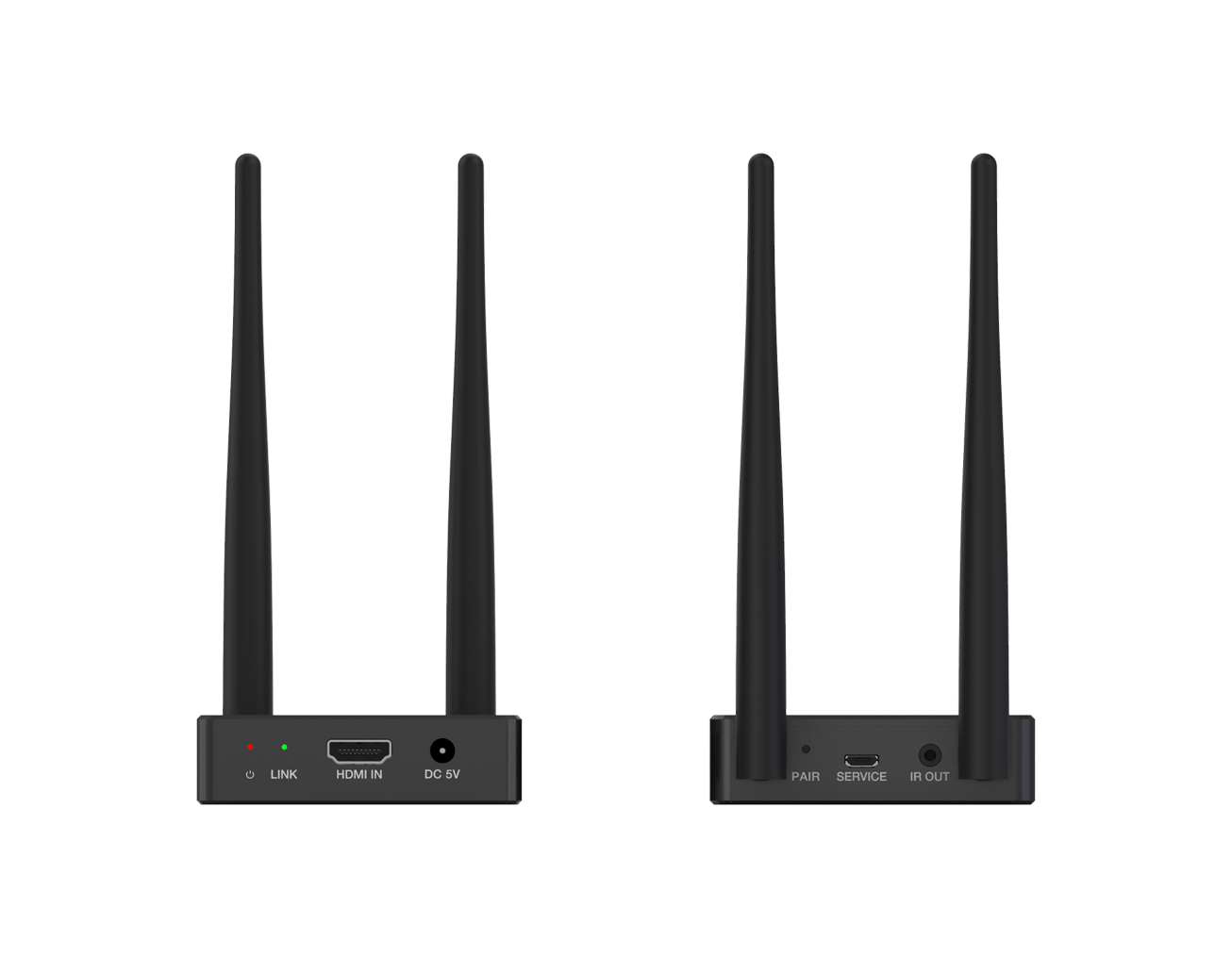

| Encoder | Inputs: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x IR OUT [3.5mm Stereo Mini-jack] 2x WiFi OUT [WiFi antenna] Control: 1x SERVICE [Micro USB, Update port] |
||
| Decoder | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 2x WiFi IN [WiFi antenna] Outputs: 1x HDMI OUT [Type A, 19-pin female] Control: 1x SERVICE [Micro USB, Update port] |
||
| Mechanical | |||
| Housing | Plastic Enclosure | ||
| Color | Black | ||
| Dimensions | Encoder / Decoder: 76mm [W] x 98mm [D] x 21mm [H] |
||
| Weight | Encoder / Decoder: 100g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/2A |
||
| Power Consumption | Encoder: 3.5W, Decoder: 2.6W (Max) | ||
| Operation Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
| Resolution / Cable Length |
1080P60Hz - Feet / Meters |
||
| HDMI IN / OUT | 42ft / 15M | ||
| The use of “Premium High Speed HDMI” cable is highly recommended. |
|||
