☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 40Gbps video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
☆ VRR, FVA, ALLM supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
☆ Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Allows HD audio up to Dolby Atmos, DTS:X over TrueHD from any external HDMI source to any eARC/ARC sound system
☆ Built-in Equalizer, Retiming and Driver
☆ Advanced EDID management
☆ Support audio de-embedding function (output through the optical and analog port)

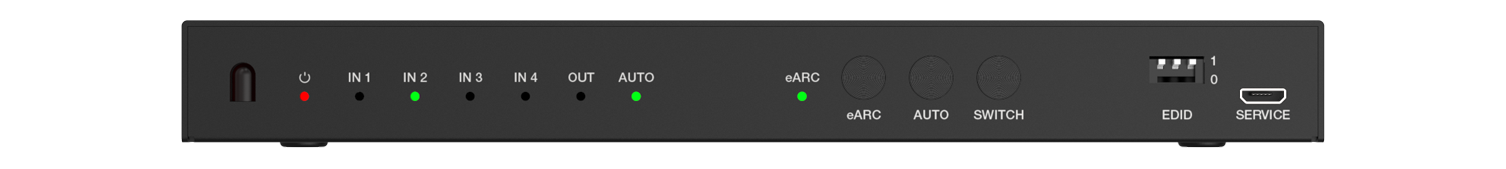

☆ Support IR remote control and front panel button switching
☆ Compact design for easy and flexible installation
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 40Gbps | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
|||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| Color Depth | 8/10/12-bit | |||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Auido de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH |
|||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | |||
| Connections | ||||

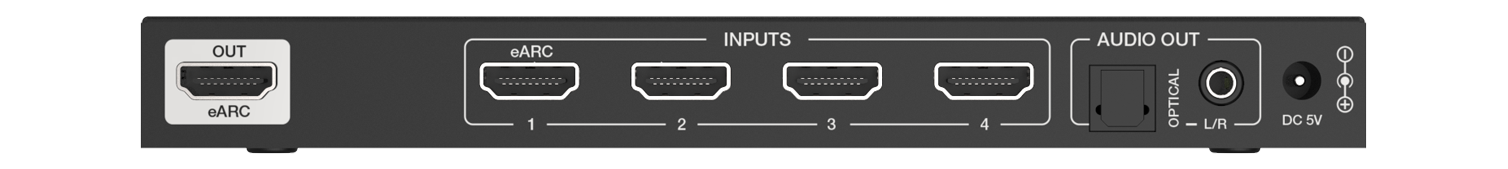

| Input | 4x HDMI IN [Type A, 19-pin female] | |||
| Output | 1x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack] |
|||
| Control | 1x SERVICE [Micro USB, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Silkscreen Color | Black | |||
| Dimensions | 200mm (W) x 85mm (D) x 20mm (H) | |||
| Weight | 407g | |||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 1.5W (Max) | |||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | |||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | |||
| Relative Humidity |  20 - 90% RH (no condensation) |
|||
| The use of “Premium High Speed HDMI” cable is highly recommended. |
||||
