☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 40Gbps video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
☆ VRR, FVA, ALLM supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
☆ Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Built-in Equalizer, Retiming and Driver
☆ Advanced EDID management
☆ Support audio de-embedding function (output through the optical and analog port)
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.1 | ||
| HDCP Compliance | HDCP 2.3 | ||
| Video Bandwidth | 40Gbps | ||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | ||
| Color Depth | 8/10/12-bit | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 | ||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Auido de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0 |
||
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

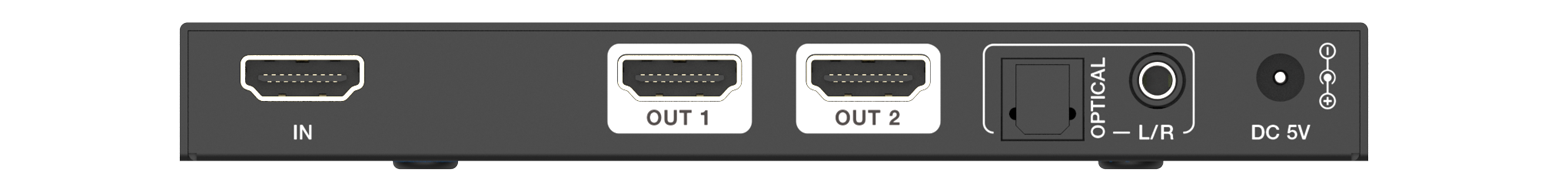

| Input Port | 1x HDMI Type A [19-pin female] | ||
| Output Ports | 2x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack] |
||

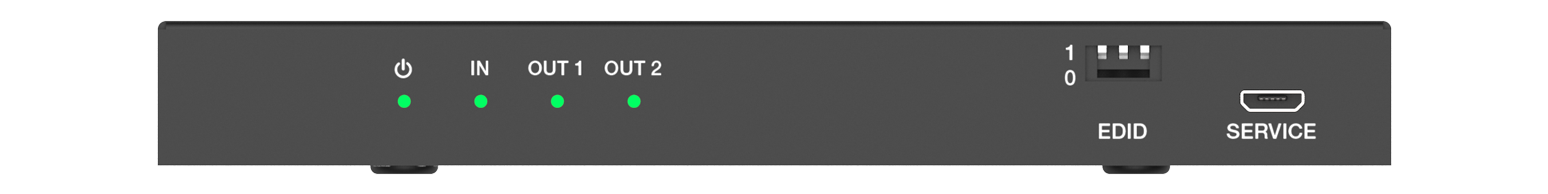

| Control | 1x SERVICE [Micro USB, Update port] | ||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Silkscreen Color | Black | ||
| Dimensions | 145mm (W) x 68mm (D) x 17mm (H) | ||
| Weight | 258g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 4.15W (Max) | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
