☆ HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@50/60Hz 4:4:4
☆ Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
☆ Support HDR, HDR10, HDR10+, HLG and Dolby vision
☆ Advanced EDID management
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2/1.x | ||
| Video Bandwidth | 594MHz/18Gbps | ||
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 | ||
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
||
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0 | ||
| HDR | Support HDR, HDR10, HDR10+, HLG, Dolby vision | ||
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby TrueHD, DTS-HD | ||
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

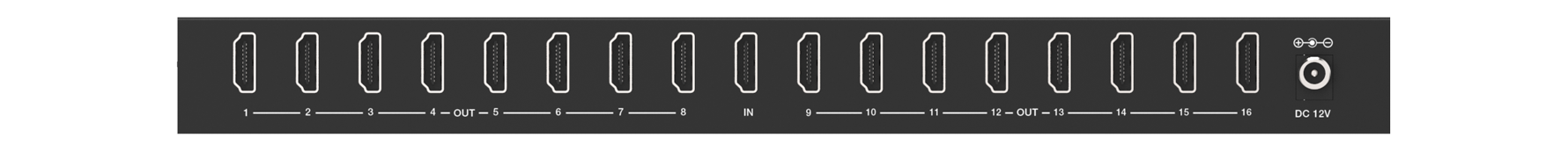

| Input Port | 1x HDMI Type A (19-pin female) | ||
| Output Ports | 16x HDMI Type A (19-pin female） | ||
| Control | 1x SERVICE (Micro USB, Update port） 1x DIAL switch [5-pin] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Silkscreen Color | Black | ||
| Dimensions | 300mm (W) x 100mm (D) x 28mm (H) | ||
| Weight | 900g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 12W | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
