☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Supports 18Gbps bandwidth
☆ Supports resolution up to 4K@60Hz 4:4:4
☆ Supports HDR function
☆ Supports COPY/AUTO EDID control via dialling the dip switch
☆ Compact design for easy and flexible installation
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 594MHz/18Gbps | ||
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz | ||
| HDMI Audio Formats | PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X | ||
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Connections | |||

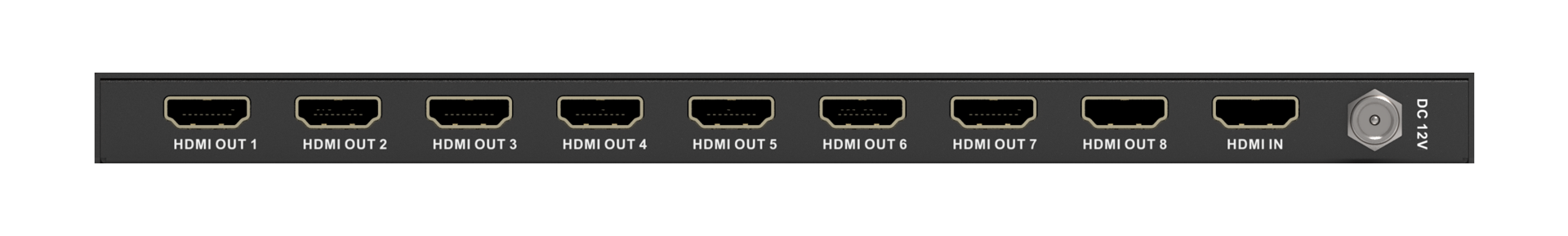

| Input Port | 1x HDMI Type A (19-pin female) 1x SERVICE (Micro USB, Update port) |
||
| Output Ports | 8x HDMI Type A (19-pin female） | ||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Silkscreen Color | Black | ||
| Dimensions | 243mm (W) x 102mm (D) x 16mm (H) | ||
| Weight | 572g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 6.15W | ||
| Operation Temperature | 14°F - 122°F / -10°C - 50°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
