☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
☆ Support 3D frame sequential video format up to 1080p@60;
☆ Supports 3D frame sequential video format up to 4K2K@30Hz
☆ Supports high resolution VESA mode video format up to QSXGA@60Hz
☆ Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ Supports smart EDID control
☆ Compact design for an easy and flexible installation
| Technical | |||
| Video Bandwidth | 600MHz/18Gbps | ||

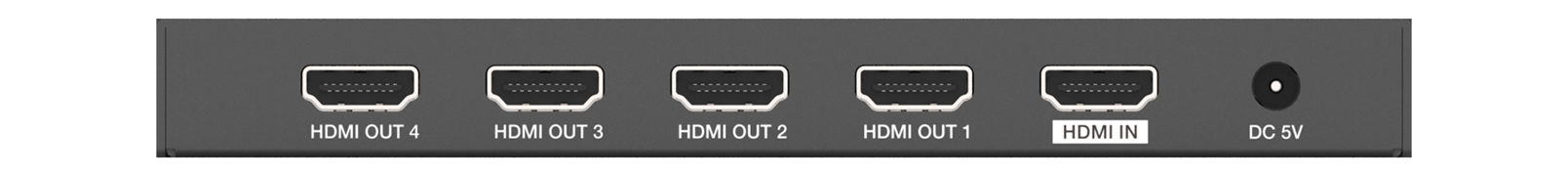

| Input Port | 1x HDMI Type A (19-pin female) | ||
| Output Ports | 4x HDMI Type A (19-pin female) | ||
| Video Resolution |
480i-1080P50/60,4K2K@24/30,4K2K@60Hz |
||
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||
| Chassis Material | Metal | ||
| Silkscreen Color | Black | ||
| Dimensions | 63mm (W) x 163mm (D) x 16mm (H) | ||
| Weight |
260g |
||
| Power Supply | 5V/1A DC (US/EU standards，CE/FCC/UL certified) | ||
| Power Consumption | 2W | ||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | ||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | ||
| Relative Humidity |  20 - 90% RH (no condensation) |
||
