☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@50/60Hz 4:4:4
☆ Support HDR, HDR10+, HLG and Dolby vision
☆ Support up to 7.1CH HD audio pass-through
☆ Support digital and analog audio de-embedded output
☆ Extend the signal transmission distance up to 35 meters at the resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable
☆ Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs.
☆ Support one-way IR control signal pass-through
☆ Advanced EDID management
☆ Support one-way PoC function (only from transmitter to receiver)
☆ Compact design for easy and flexible installation
| Technical | ||||
| HDMI Compliance | HDMI 2.0b | |||
| HDCP Compliance | HDCP 2.2/1.x | |||
| Video Bandwidth | 594MHz/18Gbps | |||
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 | |||
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
|||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 | |||
| HDR | Support HDR10, HDR10+, HLG, Dolby vision | |||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | |||
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 | |||
| Analog Audio Formats | PCM 2.0CH | |||
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) | |||

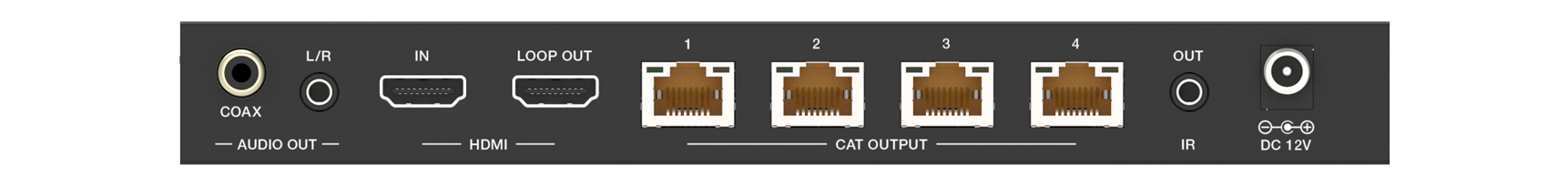

| Connections | ||||
| Input | 1×HDMI Type A (19-pin female) | |||
| Output | 1×HDMI Type A (19-pin female） 4x CAT OUT [RJ45, 8-pin female] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [3.5mm Stereo Mini-jack] |
|||
| Receiver | 1×SERVICE (Micro USB, Update port） 1x EDID DIAL switch [5-pin] 1x IR OUT [3.5mm Stereo Mini-jack] |
|||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Silkscreen Color | Black | |||
| Dimensions | Transmitter: 210mm (W) × 100mm (D) × 25mm (H) Receiver: 88mm (W) × 61mm (D) × 18mm (H) |
|||
| Weight | Transmitter: 617g Receiver:155g | |||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 14W | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity |  20 - 90% RH (no condensation) |
|||
