☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
☆ HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
☆ HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
☆ LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
☆ HDMI input audio or TV eARC audio de-embedded to any Soundbar
☆ Full audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC & Beam or any eARC Soundbar
☆ Support CEC control from TV to the source and Soundbar
☆ Support CEC volume control from TV to any sound system
☆ Advanced EDID management
|
Technical |
||||
|
HDMI Compliance |
HDMI 2.1 | |||
|
HDCP Compliance |
HDCP 2.3 | |||
|
Video Bandwidth |
48Gbps FRL and 18Gbps TMDS |
|||
|
Video Resolution |
Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
|||
| Audio Latency | No Latency | |||
| Video Latency | No Latency | |||
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 | |||
|
Color Depth |
8-bit，10-bit, 12-bit | |||
|
Audio Formats |
HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH L/R OUT: PCM 2.0CH |
|||
|
HDR |
HDR, HDR 10, HDR 10+, Dolby Vision, HLG |
|||
|
ESD Protection |
IEC 61000-4-2:±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
|||
|

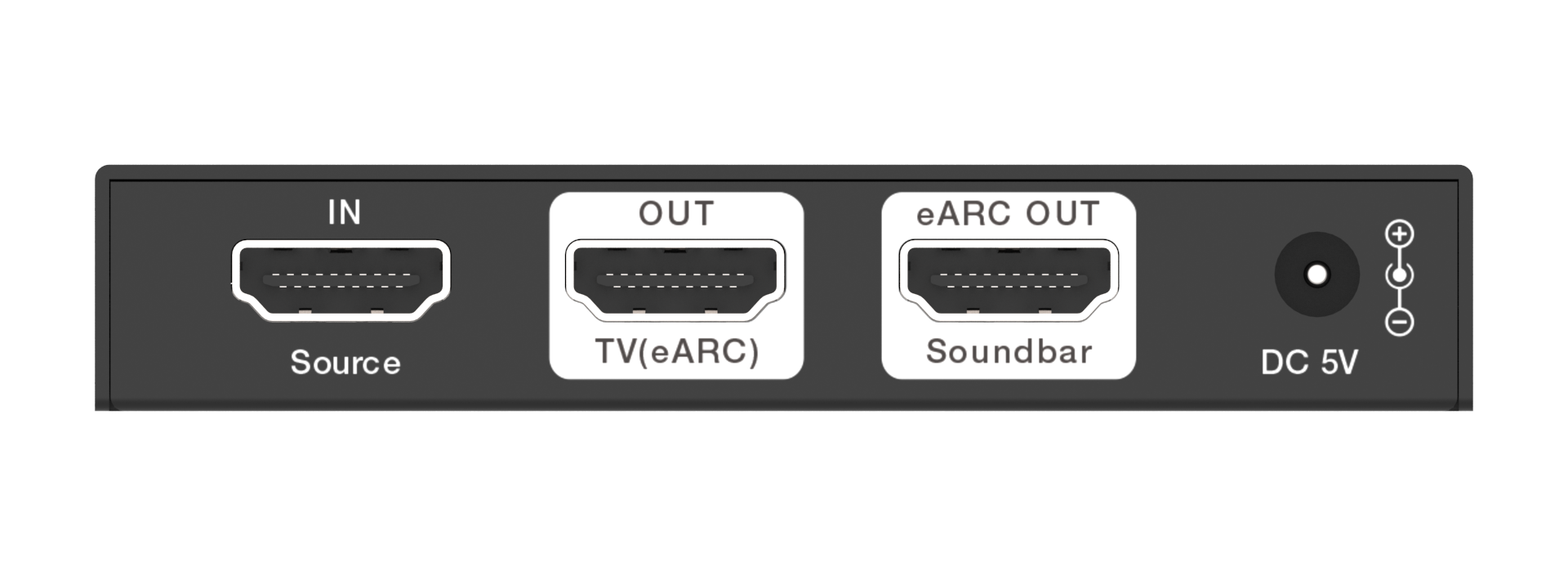

Connection |
||||
|
Input |
1 × Source IN [HDMI Type A, 19-pin female] |
|||
|
Output |
1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female] |
|||
|
Control |

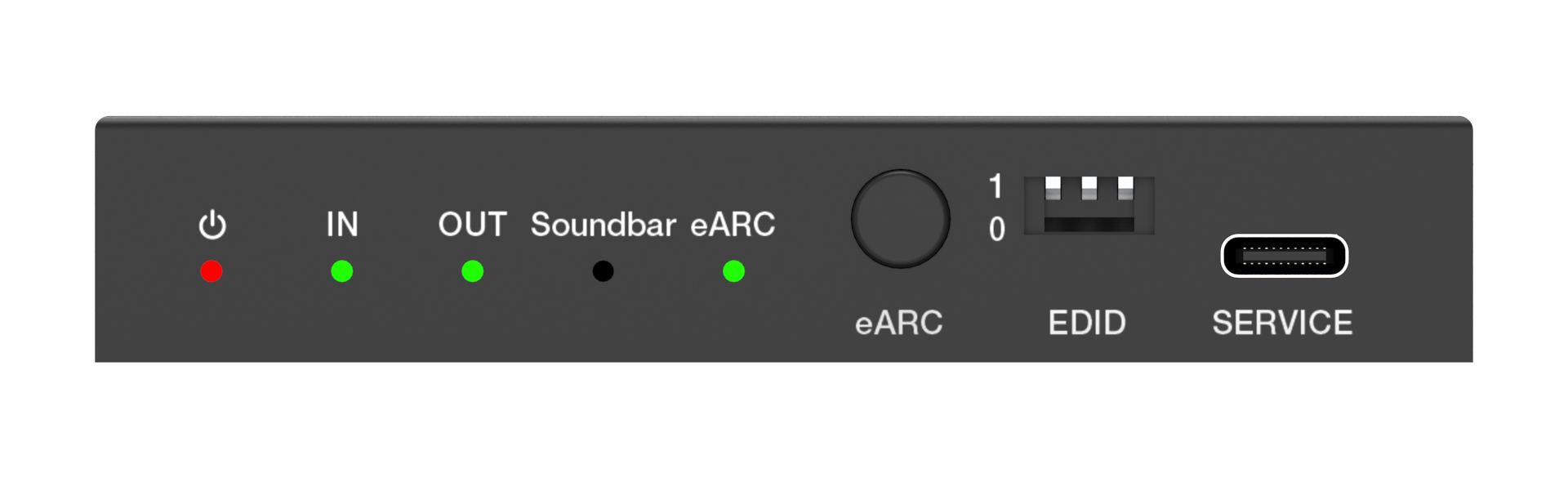

1 × SERVICE [USB Type C, Update port] |
|||
|
Mechanical |
||||
|
Housing |
Metal Enclosure |
|||
|
Color |
Black |
|||
|
Dimension |
95mm [W] × 68mm [D] × 18mm [H] |
|||
|
Weight |
178g |
|||
|
Power Supply |
Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified） |
|||
|
Power Consumption |
4.13W（Max） | |||
|
Operation Temperature |
32°F - 104°F / 0°C - 40°C | |||
|
Storage Temperature |
-4°F - 140°F / -20°C - 60°C | |||
|
Relative Humidit |
 20 - 90% RH (non-condensing) |
|||
| Recommended HDMI Cable | ||||
|
Video Resolution |
8K60 |
4K60 |
1080P |
|
|
HDMI Cable Length (HDMI IN / OUT)
|
2m/6.6ft ~ 3m/10ft (Ultra HDMI 2.1)
|
5m/16ft
|
15m/49ft |
|
