☆ HDMI 1.3 compliant
☆ Input: HDMI x 1; Output: 3.5mm L/R x1, RCA x 2
☆ ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analog stereo output, for audio receiver/amplifier/head-phone applications
☆ Support PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2 channel stereo audio output
☆ Support CEC function (TV remote can control the volume)
| Technical | ||||
| HDMI Compliance | HDMI 1.3 or above | |||
| Vmax | 2Vrms | |||
| SNR | ＞90dB | |||
| THD+N Ratio | ＜0.1% (V_max) 0.001%~0.01% (V_best) |
|||
| Crosstalk | ＞80dB | |||
| Frequency Response | 20Hz~20kHz±1dB | |||
| HDMI Audio Formats | PCM 2.0, Dolby 5.1, DTS 5.1 | |||
| L/R Audio Formats | Analog Stereo 2CH | |||
| Connections | ||||

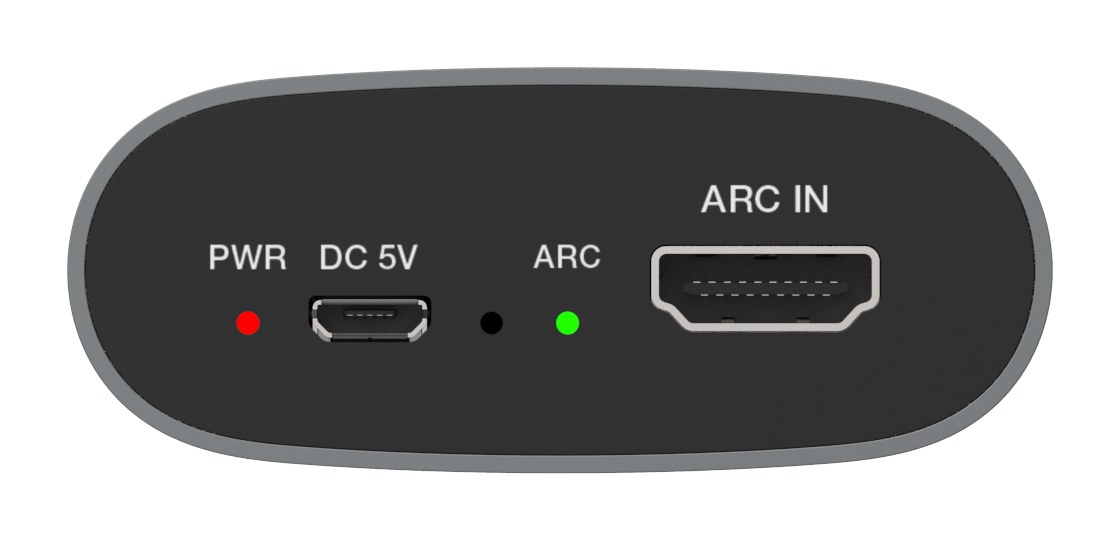

| Inputs | 1x HDMI Type A [19-pin female] 1x Micro USB |
|||
| Outputs | 1x L/R Audio Out [RCA] 1x 3.5mm L/R |
|||
| Mechanical | ||||
| Housing | Aluminium Enclosure | |||
| Color | Silver | |||
| Dimensions | 70mm[W] x 65mm[D] x 27mm[H] | |||
| Weight | 80g | |||
| Power Supply | USB 5V/500mA | |||
| Power Consumption | 0.86W (Max) | |||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | |||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | |||
| Relative Humidity |   20 - 90% RH (no condensation) |
|||
