☆ HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
☆ Video resolutions up to 4K2K@50/60Hz (YUV444)
☆ Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
☆ HDMI Pass-through audio input to HDMI and optical audio output
☆ Support bitstream audio down-mix to L/R analog output
☆ Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
☆ Support HDMI High Bit Rate(HBR) audio pass through
☆ Audio sample rates up to 192kHz
☆ 10bits HDR (High Dynamic Range) pass through
☆ Support CEC pass-through
| Technical | ||||
| HDMI Compliance | HDMI 2.0b | |||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | |||
| Video Bandwidth | 18Gbps | |||
| Video Resolutions | Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz | |||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | |||
| HDMI Audio Formats (Pass-through) |
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | |||
| Optical Audio Formats | LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH | |||
| L/R Audio Formats | Analog Stereo 2CH | |||
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | |||
| Connections | ||||
| Inputs | 1x HDMI Type A [19-pin female] | |||

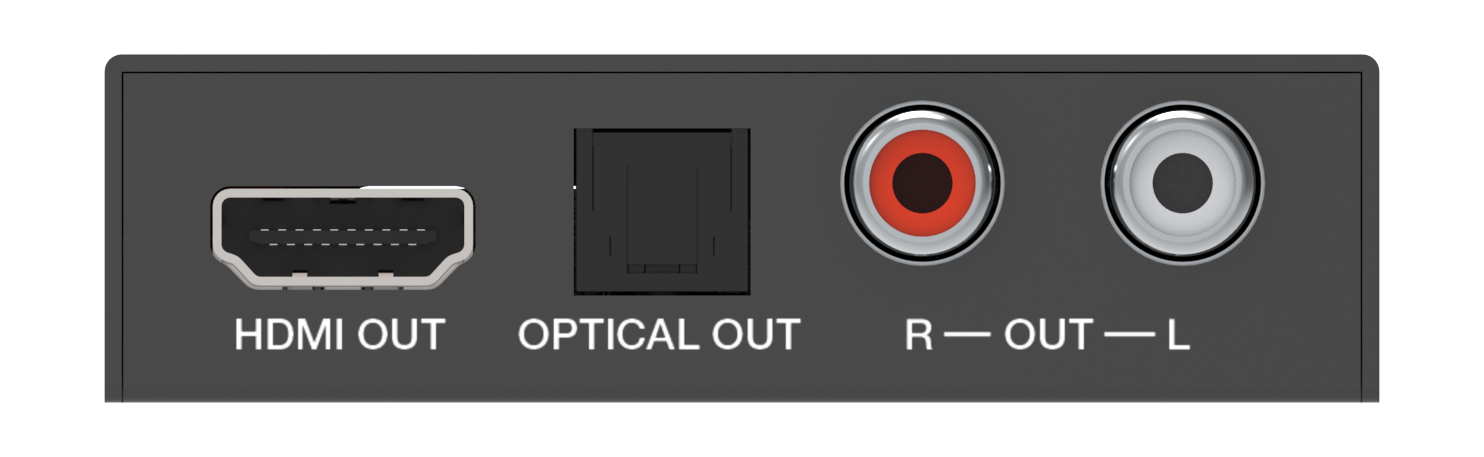

| Outputs | 1x HDMI Type A [19-pin female] 1x L/R Audio Out [RCA] 1x Optical Out [S/PDIF] |
|||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions | 73.5mm[W] x 60.7mm[D] x 20mm[H] | |||
| Weight | 135g | |||
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 1.25W (Max) | |||
| Operation Temperature | 32°F - 104°F / 0°C - 40°C | |||
| Storage temperature | -4°F - 140°F / -20°C - 60°C | |||
| Relative Humidity |  20 - 90% RH (no condensation) |
|||
