☆ Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
☆ Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
☆ Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
☆ Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
☆ Connect with other units to extend your signal over long distances

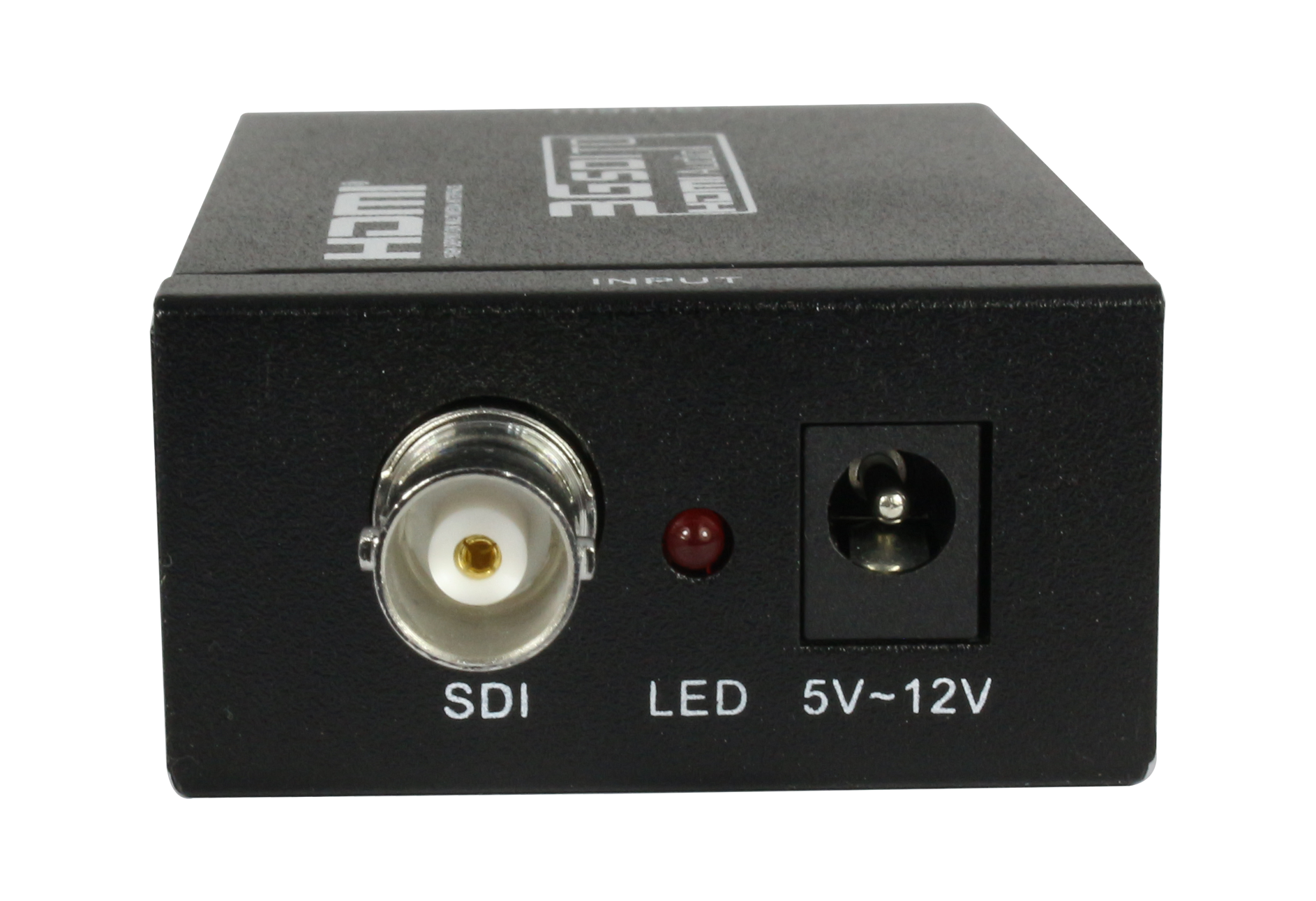

| Input Port | 1 x BNC (SDI/HD-SDI/3G-SDI) | |||
| Output Port | 1 x HDMI | |||
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s | |||
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60 | |||
| Power Supply | DC 5V -12V | |||
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | |||
| Dimension | 80mm x 41mm x 25mm | |||
| Weight | 150g | |||
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | |||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |||
| Relative Humidity | 20 ~ 90% RH (Non-condensing) | |||
| Power Consumption (Max) | 5W | |||
