☆ Shows HDMI source on SDI display.
☆ SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
☆ Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
☆ Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s); 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s); 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
☆ Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
| Input Port | 1x HDMI | |||

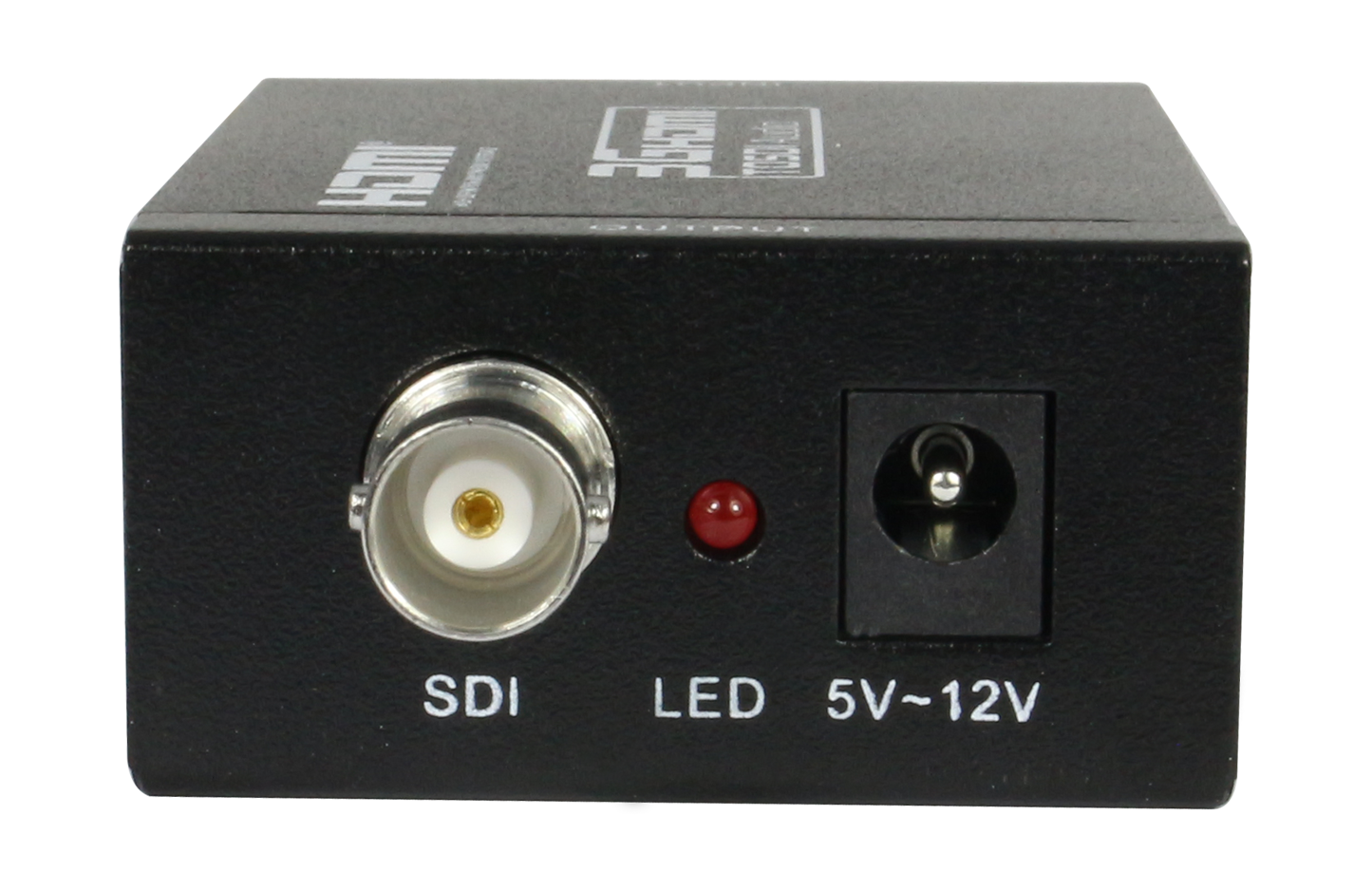

| Output Port | 1x BNC (SDI/HD-SDI/3G-SDI) | |||
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s | |||
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60; 1080p@23.97/24/25/29.97/30/50/59.94/60 | |||
| Power Supply | DC 5V-12V | |||
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | |||
| Dimension | 80mm x 41mm x 25mm | |||
| Weight | 150g | |||
| Operating Temperature | 0°C - 40°C / 32°F - 104°F | |||
| Storage Temperature | -20°C - 60°C / -4°F - 140°F | |||
| Relative Humidity | 20 - 90% RH (Non-condensing) | |||
| Power Consumption (Max) | 5W | |||
