☆ Supports HDMI video input capture and HDMI loop output.
☆ Supports resolution 480i~1080p60Hz format video capture.
☆ Supports resolution 4K2K@60Hz (Down Scaler)->1080p60Hz video capture. (Attention: 4K2K@50/60Hz 4:2:2 resolution not supported down scaler function.)
☆ HDMI input and HDMI loop output supports HDMI 2.0, HDCP 2.2, resolution the maximum up to 4K2K@60Hz(4:4:4).
☆ Supports analog stereo audio input. (Double audio inputs selected to capture audio.)
☆ Supports analog stereo audio extract output from HDMI source.
☆ Compatibles Windows, Linux, OS X operating systems.
☆ Compatibles USB3.0 about transmission rate up to 300~350MB/s.
☆ Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software.
☆ Simple plug and play, no drive and setting installation required.
| Technical | ||||

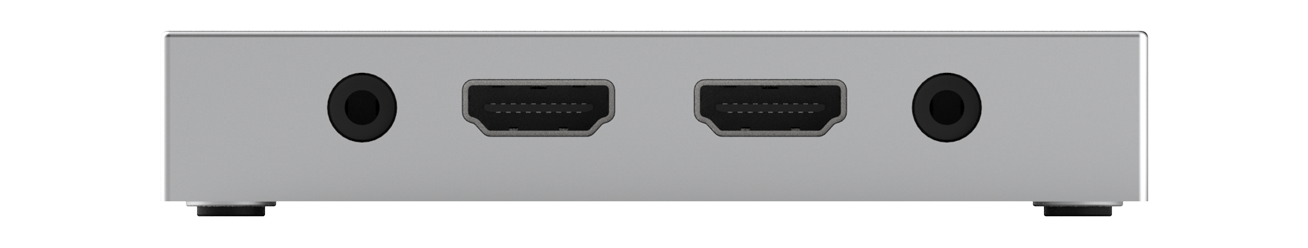

| Input ports | 1x HDMI IN [19-pin female] 1x AUDIO IN [3.5mm Stereo Mini-jack] |
|||
| Output ports | 1x USB [USB Type A, USB3.0—300~350MB/s] 1x HDMI OUT [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] |
|||
| HDMI input resolution | Up to 4k2k@60(4:4:4) (Attention: 4k2k@50/60Hz 4:2:2 not supported down scaler function.) |
|||
| HDMI output capture resolution | 640x360, 640x480, 720x480, 720x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1280x720, 1280x800, 1368x768, 1440x900, 1280x1024, 1280x960, 1600x1200, 1680x1050, 1920x1080 |
|||
| HDMI loop out resolution | Up to 4k2k@60(4:4:4) | |||
| Frame Rate | 25/29.97/30/50/59.94/60fps | |||
| Audio and video capture | UVC (USB video class) and UAC (USB audio class) standard | |||
| Supports OS | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above) | |||
| Software compatibility | OBS (Windows), Windows Media Encoder(Windows), Adobe Flash Media Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and Potplayer (Windows) etc. |
|||
| Mechanical | ||||

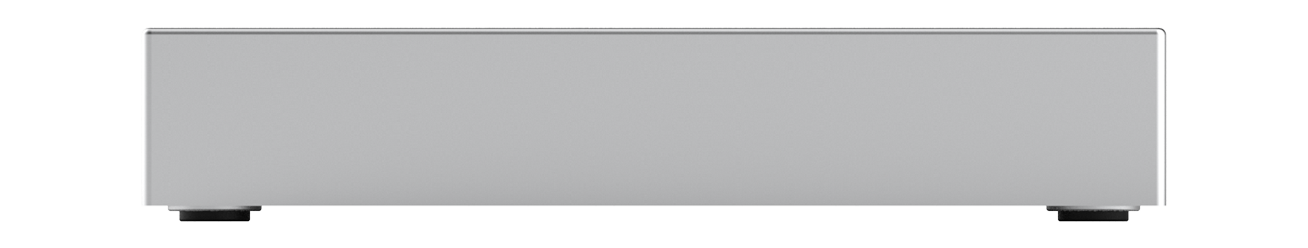

| Housing | Metal Enclosure | |||
| Color | Silvery | |||
| Dimension | 98mm [W] x 60mm [D] x 17mm [H] | |||
| Weight | 125g | |||
| Power Consumption | 3.4W | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (Non-condensing) | |||
