☆ Supports AV, YPbPr, VGA, DVI, HDMI and SDI video input capture.
☆ Supports input interface automatic recognition.
☆ Supports resolution 480i~1920×1200 input format video capture.
☆ Supports AV, YPbPr, VGA and DVI analog stereo audio inputs.
☆ Compatibles Windows, Linux, OS X operating systems.
☆ Compatibles USB3.0 about transmission rate up to 300~350MB/s.
☆ Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software.
☆ It can automatically detect the input video format, adjust the set output size and frame rate.
☆ Simple plug and play, no drive and setting installation required
| Technical | ||||
| Host port | 1x USB [USB Type A, USB3.0 — 300~350MB/s] | |||

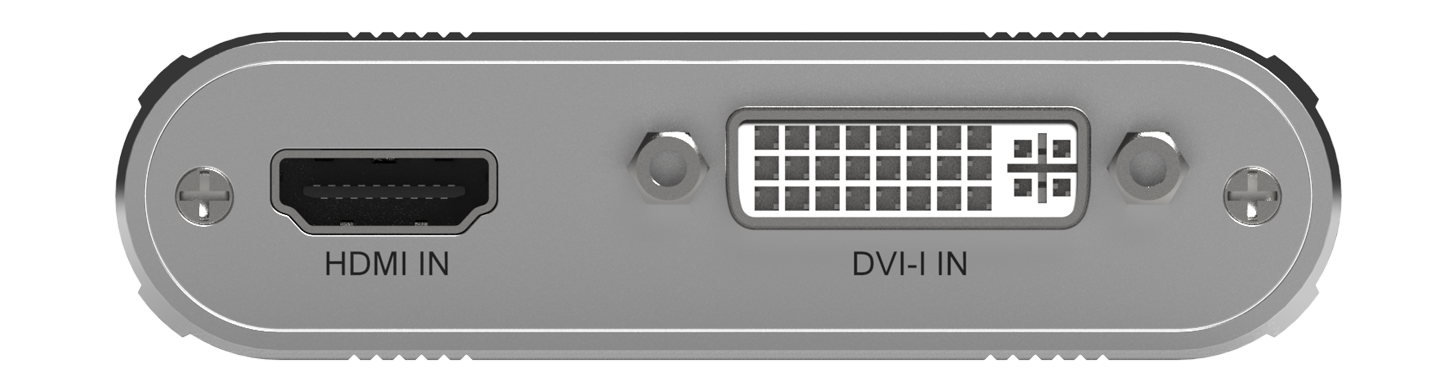

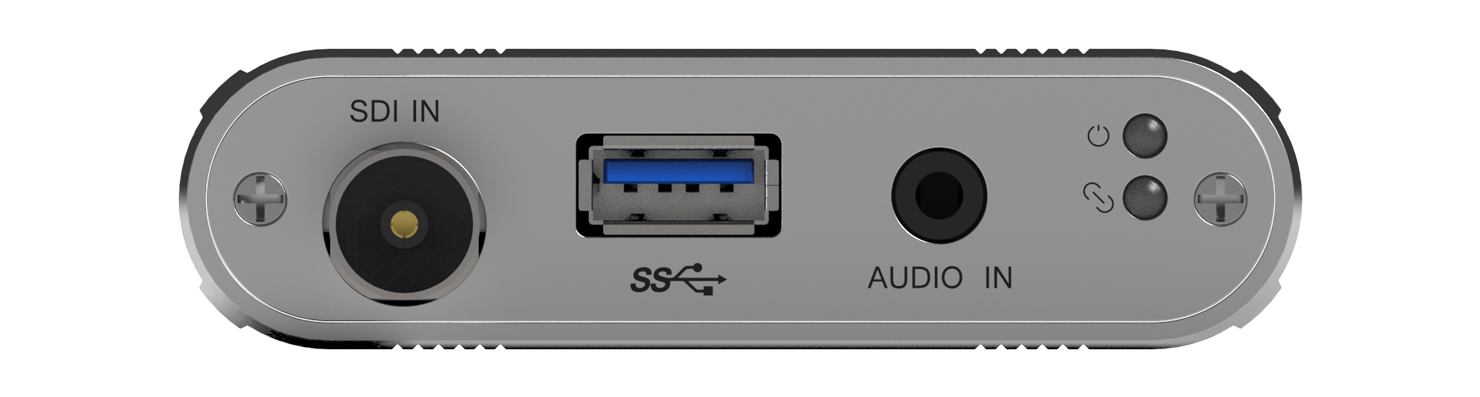

| Input ports | 1x DVI IN [DVI-I, Attention: This is a common interface, it can also connect VGA/YPbPr/ AV source input though converter joint.] 1x HDMI IN [19-pin female] 1x SDI IN [BNC] 1x AUDIO IN [3.5mm Stereo Mini-jack] |
|||
| HDMI input resolution | 480i, 480p, 576i, 576p, 720p50/60, 1080i50/60, 1080p24/25/30/50/60 | |||
| SDI input resolution | 480i, 576i, 720p50/60, 1080I50/60, 1080P24/25/30/50/60 | |||
| VGA input resolution | 640x480,800x600,1024x768,1280x1024,1400x1050,1600x1200 | |||
| DVI input resolution | 720x480i/p60Hz, 720x576i/p50Hz, 1280x720p50Hz, 1280x720p60Hz, 1920x1080i/p50Hz, 1920x1080i/p60Hz | |||
| YPbPr input resolution | 480i, 576i, 480p, 576p, 720p50/60, 1080I50/60 | |||
| AV input resolution | 480i, 576i | |||
| Output resolution | 640x360, 640x480, 720x480, 720x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1280x720, 1280x1024, 1280x960, 1280x800, 1368x768, 1440x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200 | |||
| Frame Rate | 25/29.97/30/50/59.94/60fps | |||
| Audio and video capture | UVC (USB video class) and UAC (USB audio class) standard | |||
| Supports OS | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above) | |||
| Software compatibility | Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and Potplayer (Windows) etc. | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | White | |||
| Dimension | 114mm [W] x 82mm [D] x 22mm [H] | |||
| Weight | 168g | |||
| Power Consumption | 3.9W | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (Non-condensing) | |||
