☆ HDMI 2.0b, HDCP 2.2, USB 2.0 and USB 3.0 compliant
☆ 18Gbps HDMI video bandwidth, 5Gbps USB video bandwidth
☆ HDMI INPUT video resolution reaches up to 4K2K@60Hz;
USB OUTPUT video resolution has a range between 480i to 1080p60Hz
☆ Support 4K2K@60Hz downscaling to 1080p60Hz
☆ Support 4K60 4:4:4 HDMI loop out
☆ Operative in Windows, Linux and OS X
☆ USB transmission speed up to 300~350Mb/s
☆ Compatible with VLC, OBS, XSPLIT, AMCAP and other video capturing software.
☆ Compact in design, plug and play
| Technical | ||||
| HDMI Compliance | HDMI 2.0b | |||
| HDCP Compliance | HDCP 2.2 | |||
| Video Bandwidth | HDMI: 18 Gbps; USB: 5Gbps | |||
| Video Resolution | Up to 4K2K@60Hz 4:4:4 | |||
| Video Compression Standards |
Video will be in YUV2 with no compression if outputting via a USB 3.0 port; Video will be compressed in MJPEG if outputting via a USB 2.0 port |
|||
| USB OUTPUT Resolution |
Support 4K24/25/30/50/60 INPUT down scaling to 1080P OUTPUT; For resolutions lower than 1080P, INPUT keeps the same as OUTPUT |
|||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDMI Audio Format | PCM 2.0 | |||
| USB Audio Format | PCM 2.0 | |||
| USB Version | USB 3.1 GEN 1 | |||
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | |||
| Connection | ||||
| Input | 1x HDMI Type A [19-pin female] | |||

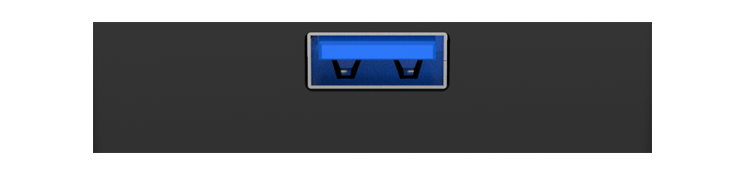

| Outputs | 1x HDMI Type A [19-pin female] 1x USB Type A [female] |
|||
| Mechanical | ||||
| Housing | Plastic Enclosure | |||
| Color | Black | |||
| Dimension | 90mm[W] x 60mm[D] x 16mm[H] | |||
| Weight | 47g | |||
| Power Supply | USB 5V / 900mA | |||
| Power Consumption | 3.5W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (Non-condensing) | |||
